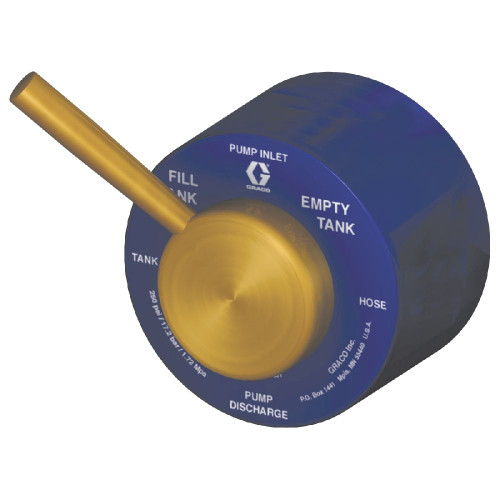

GRACO 120601 - 1-1/2" NPT (Female) 4-Way Evacuation Valve, 200 PSI
Professional-grade 4-way evacuation valve designed for efficient fluid handling in truck-mounted pumping systems. Features 1.5" NPT threading for high-flow applications and enables versatile operation for filling, emptying, and transferring fluids between truck tanks and external containers.
The 4-way evacuation valve is a directional control valve used to simplify the filling and emptying of tanks. Typical applications include filling and emptying waste containers on lube trucks and transferring fluids from bulk supply tanks to operational day tanks. Typical fluids handled include petroleum and synthetic-based oils, fuels, anti-freeze and windshield wash fluid.
Simplifies installation by eliminating need for multiple valves
Unrestricted flow - no pressure or volume loss
Two position tank fill and emptying control
Tapered, self-seating valve spool for superior sealing performance
Four (4) 5/16 inch threaded bolt holes for flush mount installation
Additional Specifications
- Thread: 1.5" NPT
- Max Working Pressure: 200 PSI (13.8 bar, 1.38 MPa)
- Material: Aluminum spool and housing with fluoroelastomer (O-Rings)
- Dimensions: 4.75 in x 4.75 in (121 mm x 121 mm)
- Weight: 6.5 lbs (2.95 kg)
- Mounting Threads: 5/16 UNC
| Maximum Working Pressure (MPa) | 1.4 |
| Maximum Working Pressure (psi) | 200 |
| Overall Height (in) | 4.75 |
| Overall Width (in) | 4.75 |
| Thread Gender | Female |
| Thread Size (in) | 1-1/2 |
| Thread Type | NPT |
| Type | Control Valve |
| Weight (lb) | 3.5 |
| Wetted Parts | Aluminum, Fluoroelastomer |
Features
- 4-way valve operation for versatile fluid routing
- Heavy-duty aluminum construction for durability
- Fluoroelastomer O-Rings for chemical compatibility
- 200 PSI maximum working pressure rating
- Compact 4.75" x 4.75" footprint
Applications
- Filling truck tanks from external sources
- Emptying truck tanks to disposal/storage
- Lube truck operations and fluid transfer
- Bulk waste oil handling and recovery
Compatible Equipment
- Truck-mounted pumping systems
- Mobile service vehicles
- Lube trucks
- Bulk waste oil collection equipment
Related Parts
Available in both 1" NPT (120581) and 1.5" NPT (120601) configurations. Diagrams show typical installation configurations for various truck tank applications. For use with petroleum and synthetic-based oils, fuels, antifreeze, and windshield wash fluid. For professional use only. Not approved for use in explosive atmospheres or hazardous (classified) locations. Part of Models and Replacement Parts list
