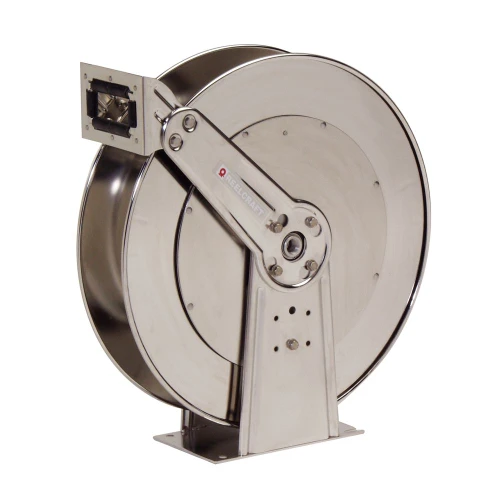

Reelcraft D83000 OLS-S - 3/4" x 75 ft. Stainless Steel A/Water Hose Reel w/ SS Fluid Path

Reelcraft D83000 OLS-S - 3/4" x 75 ft. Stainless Steel A/Water Hose Reel w/ SS Fluid Path

Item #: D83000-OLS-S

MSRP: Price: $3,339.32

Price: with strikethrough $3,704.00

Retail Price:

Sale Price: Price $3,100.80

(You save $238.52 )

QTY:

In Stock – Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description

Reelcraft D83000 OLS-S - 3/4" x 75 ft. Stainless Steel Hose Reel

Reelcraft’s stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer, and industrial-solvent handling. Also suitable for coastal, offshore, and on-board ships in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel includes Viton O-rings. Note: Reel includes stainless steel latch parts and fluid path.

Reinforced steel – The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to ensure maximum strength and the lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
Quality finish and corrosion resistant – Stainless steel components offer maximum protection from premature corrosion.
Made in the USA

D83000-OLS-S Parts List (18 Items) ▼

Item #	# Req.	Part Number	Description
1	1	602624	Swivel Assembly
3	2	261455	Guide Arm
4	1	S600726-3	Spring & Case Assembly
5	1	260388	U-Bolt
7	1	S600731	Roller Bracket Assembly
14	1	S600724	Flange w/Bearing & Nut-Sert
15	1	262653	Ratchet, Flow Casting
16	1	261393	Spool Spacer
19	1	600730	Base & Upright Assembly
20	1	S392-2	10-32 Shoulder Screw
21	1	260067-1	Latch Spring
22	1	S600069-1	Latch Pawl Assembly
23	1	S600725	Bearing & Flange Assembly
24	1	261453	Sheave, Hose Opening
25	1	261467	Pipe Plug/Cap
26	1	261454	Sheave, Springcase
27	8	S347-411	Screw 1/4-20 x 2 1/2"
28	3	S347-511	Screw 5/16-18 x 2 1/2"

Weight	84 lbs
Series	80000
Hose I.D.	3/4"
Hose O.D.	1.188"
Hose Length	75'
Pressure	500 psi
Inlet	3/4" NPT(F)
Reel Outlet	3/4" NPT(F)
Hose Included	No
Max Temperature	210 °F
UPC	699567017738
Carton Dimensions	27.5" x 13.625" x 27.625"
Internal Fluid Path	Stainless Steel
Swivel Assembly	Stainless Steel
Swivel Seal	FKM

Weight	84 lbs
Series	80000
Hose I.D.	3/4"
Hose O.D.	1.188"
Hose Length	75'
Pressure	500 psi
Inlet	3/4" NPT(F)
Reel Outlet	3/4" NPT(F)
Hose Included	No
Max Temperature	210 °F
UPC	699567017738
Carton Dimensions	27.5" x 13.625" x 27.625"
Internal Fluid Path	Stainless Steel
Swivel Assembly	Stainless Steel
Swivel Seal	FKM
