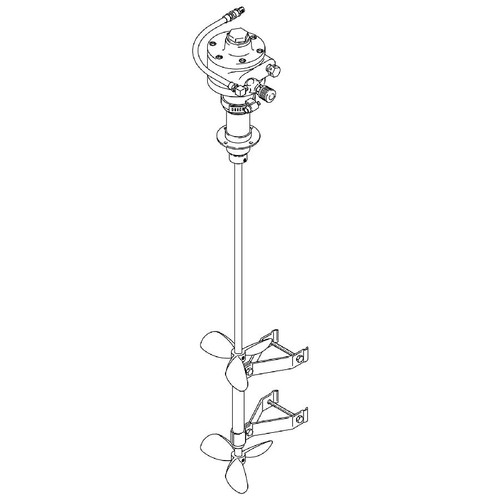

GRACO 203711 Drum agitator without mounting tube, air driven, 1/2 HP, 31.25 inches (79.3 cm) in length, carbon steel material

Features:

Mounts on 237307 SST cover; agitator supports mount to suction tube or pump cylinder.

• Agitators mount directly to mix tank or drum covers
• Dual propeller ensures efficient and thorough mixing
• Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters

Compatible Equipment

• 101140 - 3/4 HP (550 W) Air Motor air motor
• 55-gallon drums
• agitator shaft guide (24)
• pump tie rods

Related Parts

• 204995 - Drum agitator without Mounting tube, Air-Driven, 1/2 HP, 31.25" Long, Carbon Steel
• 206219 - Drum Agitator w/ Mounting Tube, Air-Driven, 1/2 HP, 31.25" Long, Carboon Steel
• 206758 - Carbon Steel Agitator for 30-Gal. Mix Tanks & 55-Gallon Drums, Air-Driven, 1/2 HP, 31.25" Long, CS
• 207953 - Liquid Mixer
• 210067 - Air-Driven Agitator for 15 Gal Mix Tank, 3/4 HP Compatible w/ Speed Controller
• 210068 - Air-Driven Agitator for 30 Gal Mix Tank, 3/4 HP w/ Sawblade Prop, 33.87", Stainless
• 222698 - Drum agitator without Mounting Tube, Air-Driven, 3/4 HP, 31.25" Long, Stainless
• 236097 - Agitator Motor Assembly, 2 Gal
• 236629 - Twistork Drum Agitator, Siphon, Air, 3/4 HP, 47.5 in long, 304SS, Adjustable Depth for 31.5-35.5 in Drums

Reference Manuals

• 345020 (Page 17) Finishing Accessories
• 306459 (Page 1) 3/4 HO (550 W) Motor, 55-Gallon Drum Size Air Driven Agitators
• 307745 (Page 11) 3:1 President, 4:1 President, and 2:1 Monark Supply Pumps
• 308466 (Page 3) STAINLESS STEEL, PASSIVATED Drum Covers
• 3A4792 (Page 4) Air-Driven Agitators, Instructions-Parts List

Specifications:
