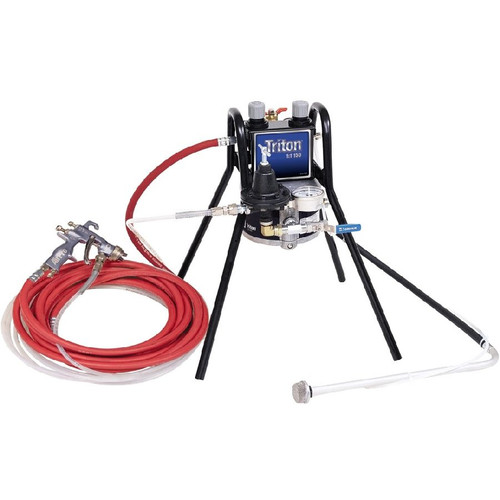

GRACO 233478 - Triton SST Spray Package, Stand, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
Triton air operated diaphragm pump spray package designed for wood and metal applications, featuring a stand mount configuration with 100 PSI fluid regulator for consistent spray pattern and uniform film thickness with minimal maintenance requirements
Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Quick color changes and fast material refills save time and money
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
- Rugged, stainless steel construction pump handles a wide variety of fluids
Additional Specifications
- Material: Stainless Steel
- Nozzle Size: .055 in (1.5 mm)
- Gun Type: Stellair HVLP Gun
- Regulator Pressure: 100 PSI (0.7 MPa, 7 bar)
- Series: D
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers, Waterborne |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | AirPro |
| Gun Technology | HVLP |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Mount Location | Stand Mount |
| Mount Type | Stand Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | HVLP |
| Type | Air-Powered Sprayer |
| Weight (lb) | 27 |
Features
- Durable package needs little maintenance
- Delivers consistent spray pattern and uniform film thickness
- Air operated diaphragm pump technology
- Affordable fine finish spraying solution
- Stainless steel construction for durability
- 4-legged stand-mount design for stability
Applications
- Wood applications
- Metal applications
- Fine finish spraying
- Professional spray finishing
- Industrial coating applications
- High-volume production environments
Compatible Equipment
- Conventional air spray guns (Stellair ACE or Stellair)
- Electrostatic air spray guns (Pro Xp)
- Triton spray finishing systems
Related Parts
- 233469 - Triton SST Spray Package, Pail, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233470 - Triton Aluminum Spray Package, Pail, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233471 - Triton SST Spray Package, Pail, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233476 - Triton SST Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233477 - Triton Aluminum Spray Package, Stand, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 233485 - Triton SST Spray Package, Cart, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233491 - Triton Aluminum Spray Package, Wall, 60 PSI Air Regulator & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 233492 - Triton SST Spray Package, Wall, 100 PSI AIr Regulator & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 233473 - Triton AL Pump Package, Stand Mount w/ Suction Hose, Applicator Not Included
- 233474 - Triton Stainless Steel Pump Package, stand Mount w/ Suction Hose., Applicator Not Included
Kit Contents
- 2004152 - Stellair HVLP Gun 1.4 mm (.055 in) nozzle
- Air hose 7.6 m (25 ft)
- Fluid hose 7.6 m (25 ft)
- Suction hose
- 100 PSI fluid regulator
- Stand mount
Part of the Stellair General Metal Application Packages family, specifically configured with HVLP gun for high volume low pressure applications Part of the 4-legged stand-mount units family. Stainless steel packages use 100 PSI (0.7 MPa, 7 bar) stainless steel fluid regulator. Bare packages do not include hose and gun. This is part of the Stand Mount Series (D) and has CE approval certification (II 2 G Ex h IIB T6 Gb). It includes a Stellair HVLP Spray Gun and features a stainless steel pump with no separate gun component.
Reference Manuals
- 300541 (Page 5) Triton
- 338753 (Page 2) Triton Spray Packages
- 309304 (Page 3) Triton 1:1 Spray Packages
- 309305 (Page 2) for Triton 1:1 Pump French, Spanish, Portuguese
