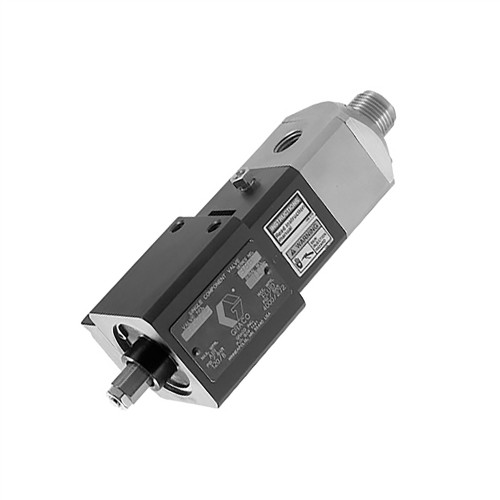

GRACO 243666 - -1K Ultra-Lite Dispense Valve w/ 45° Connection

1K Ultra-Lite Dispense Valve designed for straight connections in single-component dispensing applications. Provides precise, controlled dispensing for coating and sealing operations with reliable valve performance.

Specifications

• Connection Angle: 45 degrees
• Connection Type: straight
• Component Type: 1K (single component)

Features

• 1K Ultra-Lite design
• 45 degree straight connection
• Precise dispensing control
• Ultra-lightweight design
• Compact form factor
• 1K (single component) fluid handling

Applications

• Applications requiring angled dispense valve connections
• Precision fluid dispensing
• Single component fluid dispensing
• Precision coating applications
• Low viscosity fluid applications
• Single component coating applications

Compatible Equipment

• PrecisionSwirl dispensing systems
• 1K Ultra-Lite straight connection systems

Related Parts

• 243666 - -1K Ultra-Lite Dispense Valve w/ 45° Connection
• 965766 - 1K Ultra-Lite valve, machine mount, SST wetted parts
• 965786 - 1K Ultra-Lite valve, machine mount, Aluminum wetted parts
• 570267 - Fluid Section Seal kit, 1K Ultra-Lite valve
• 570268 - Rebuild kit, 1K Ultra-Lite valve
• 243482 - 1K Ultra-Lite Dispense Valve, 45 deg connection

Part of the dispense valve options in the PrecisionSwirl system building process. For Endura 45 degree connections, alternative part 264910 - Endura Valve is also available. This appears to be a standard 1K Ultra-Lite valve, with machine mount versions and repair kits available as related products Specifically designed for 1K Ultra-Lite straight connection applications. Part of the Ultra-Lite dispense valve family.

Reference Manuals

• 300537 (Page 7) PrecisionSwirl
• 300639 (Page 12) Graco PRECISIONFLO LT Brochure
• 336833 (Page 84) Single Component Catalog - Buyer's Guide and Specifications
• 308876 (Page 1) 1K Ultra-Lite
• 333589 (Page 79) PR-X, Setup-Operation-Repair
