GRACO 244628 - Fire-Ball 425 Series 6:1 Universal Size Oil Pump Wall-Mounted Package, 180 PSI
PUMP, 6:1 Fire-Ball 425 (used on model 244628; see manual 308608)
The Fire-Ball 425 features a 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.
- Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Additional Specifications
- Max Working Pressure: 180 PSI (1.2 MPa, 12 bar) Maximum Air Inlet Pressure, 1100 PSI (3.7 MPa, 37 bar) Maximum Fluid Working Pressure
- Application: dispensing non-corrosive and non-abrasive oils and lubricants only
- Usage: professional use only
- European Explosive Atmosphere: not approved
| Air Inlet Size (in) |
1/2 |
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Application |
Industrial |
| Compatible Material |
Oil |
| Fluid Inlet Size (in) |
1-1/2 |
| Fluid Inlet Thread Gender |
Female |
| Fluid Inlet Thread Type |
NPT |
| Fluid Outlet Size (in) |
1/2 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| Includes |

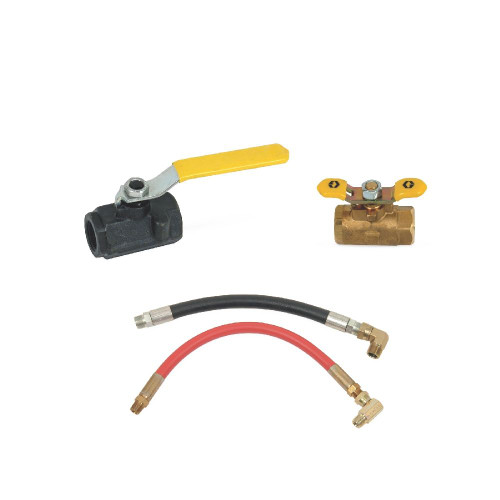

Fire-Ball 425 6:1 Pump, Filter Regulator, Hose and Fitting Kit, Air Shutoff Valve, Fluid Shutoff, Wall Mount Bracket |
| Maximum Air Working Pressure (psi) |
180 |
| Maximum Flow Rate (gpm @ 80 cpm) |
6.6 |
| Maximum Fluid Working Pressure (psi) |
1100 |
| Maximum Working Pressure (MPa) |
7.6 |
| Maximum Working Pressure (psi) |
1100 |
| Motor Type |
Pneumatic |
| Mount Location |
Wall Mount |
| Power Type |
Pneumatic |
| Pump Ratio |
6:1 |
| Pump Weight (lb) |
35 |
| Series |
425 |
| Type |
Piston Pump Package |
| Wetted Material |
Steel, Polyurethane, Aluminum, Nitrile |
Compatible Equipment
Related Parts
- 244846 - Fire-Ball 425 3:1 Series Universal Size Oil Pump Wall-Mounted Package
- 244847 - Fire-Ball 425 Series 10:1 Universal Size Oil Pump Wall-Mounted Package
- 237526 - PUMP, 3:1 Fire-Ball 425 (used on model 244846)
- 205626 - PUMP, 10:1 Fire-Ball 425 (used on model 244847)
Wall mount bulk oil transfer package. Part of Fire-Ball 425 series with 3:1, 6:1, and 10:1 ratio options. Related manual number 308608 available. This appears to be referenced as a model number that uses pump part 238108. Manual reference: 308608
Reference Manuals
- 309351 (Page 1) Wall Mount Bulk Oil Transfer Packages
