GRACO 246190 - Helical Gear Ambient Meter w/ Sensor

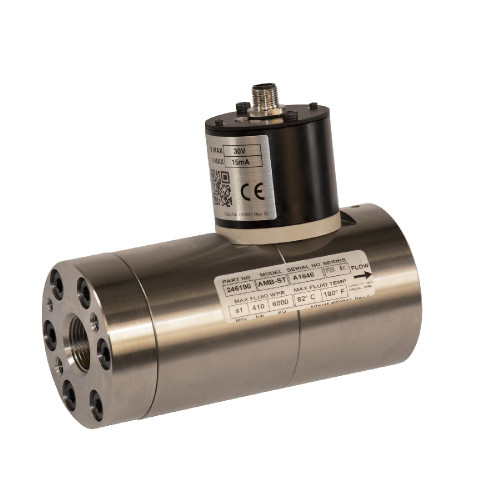

HG6000 ambient helical flowmeter with sensor for precise fluid measurement and monitoring in ambient temperature applications. Features helical gear technology for accurate flow measurement with integrated sensor capability for real-time monitoring.
Specifications
- Model: HG6000
- Temperature: ambient
- Resolution: Standard Resolution
- Flow Range: 0.05 to 6.0 gpm (190 to 22,712 cc/min)
- Max Operating Temp: 180°F (82°C)
- Connector Type: 4-pin connector
- Supply Voltage: +10-30 Vdc
- Pin 1: +10-30 Vdc Supply
- Pin 2: Signal Out
- Pin 3: Ground
- Pin 4: No Connection
Features
- Helical gear technology for accurate flow measurement
- Integrated sensor for monitoring
- Ambient temperature operation
- HG6000 series precision
Applications
- Fluid flow measurement
- Process monitoring
- Industrial fluid systems
- Dispensing applications
Compatible Equipment
- HG6000 helical flowmeter systems
- Ambient fluid plates
- Fluid dispensing equipment
- 246340 - Meter, Heli. Gear Htd w/ Sen Series D
- 246652 - PTFE High Resolution Helical Gear Flow Meter, 6000 PSI (410 Bar, 41 MPa) Series C
Related Parts
- 234134 - Flowmeter, HG6000 ambient helical, without sensor
- 246652 - Flowmeter, HG6000HR high resolution helical, with sensor
- 246650 - Flowmeter, HG6000HR high resolution helical, without sensor
- 246340 - Flowmeter, HG6000HG heated helical, with sensor
- 246191 - Flowmeter, HG6000HG heated helical, without sensor
- 246786 - Sensor, HG6000 helical flowmeter, all models
- 234167 - Fluid Plate, Ambient Cartridge Regulator with HG6000 helical flowmeter
- 234195 - Fluid Plate, Ambient Cartridge Regulator with HG6000HR high resolution helical flowmeter
- 234169 - Fluid Plate, Ambient Mastic Regulator with HG6000 helical flowmeter
- 234196 - Fluid Plate, Ambient Mastic Regulator with HG6000HR high resolution helical flowmeter
Part of the HG6000 helical flowmeter series. Sensor version provides monitoring capabilities compared to non-sensor variants. The Flow Range is a generic rating meant to cover a wide variety of materials and applications. However, the Flow Range may be different depending on the GRACO system in which the Flow Meter is used. To find the Flow Range for a specific GRACO system, refer to that system's Operation Manual. This drawing shows the pin connector used on meters 246190 Series D, 246340 Series D, 246652 Series C, and newer. Older meters used a 5-pin connector. Sensor Kit 246786 now includes a cable with a 4-pin connector, to replace the existing cable connection.
Reference Manuals
- 300639 (Page 12) Graco PRECISIONFLO LT Brochure
- 309834 (Page 1) Helical Gear Fluid Flow Meters
- 312764 (Page 36) VPM, Repair
- 3A1657 (Page 22) HFR Flow Meter Kits, Installation - Parts
- 3A3469 (Page 5) ProDispense™, Operation/Parts
