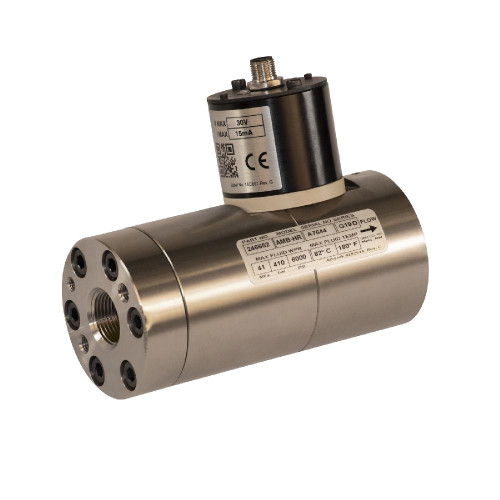

GRACO 246652 - PTFE High Resolution Helical Gear Flow Meter, 6000 PSI (410 Bar, 41 MPa)
High resolution helical gear flow meter designed for low flow applications with enhanced precision. Features 0.143 cc/pulse resolution for accurate measurement of solventborne paints, resins, oil and catalysts. Ideal for applications requiring precise flow control at reduced flow rates.
Specifications
- Flow Rate: 190 - 7,571cc/min
- Max Working Pressure: 6000 psi (410 bar, 41 MPa)
- Material: 303 SST, tungsten carbide, and PTFE
- Resolution: High Resolution
- Type: helical gear
- Viscosity Range: 30 - 1,000,000 cps
- Flow Range: 0.05 to 2.0 gpm (190 to 7571 cc/min)
- Max Operating Temp: 180°F (82°C)
Features
- High resolution measurement capability
- Includes sensor for system feedback
- Helical gear design for accuracy
- Compatible with HG6000HR systems
- High resolution 0.143 cc/pulse for precise measurement
- High pressure rating up to 6000 psi
Applications
- Fluid plate monitoring
- Precision dispensing applications
- Flow measurement and control
- System feedback and monitoring
- Low flow applications with flow rates as low as 50 cc/min
- Solventborne paints and resins
Compatible Equipment
- HG6000HR systems
- Fluid plates with transducer ports
- G3000 series systems
- Low flow metering applications
Related Parts
- 246650 - Flowmeter, HG6000HR high resolution helical, without sensor
- 246340 - Flowmeter, HG6000HG heated helical, with sensor
- 246191 - Flowmeter, HG6000HG heated helical, without sensor
- 246786 - Sensor, HG6000 helical flowmeter, all models
- 246949 - Kit, HG6000HR helical gear set repair (high resolution)
- 280560 - HG6000
- 16M519 - Coriolis Mass Flow (1/4" ID)
- 15T634 - Coriolis Mass Flow (3/8" ID)
- 246190 - Helical Gear Ambient Meter w/ Sensor
- 24P688 - Heli Gear Meter - Hi Res, 6000 PSI, 3/4 NPT(F)
Part of the HG6000HR high resolution flowmeter family. This version includes sensor capability, while part 246650 is the same flowmeter without sensor. This is the high resolution version of the HG6000 series, specifically designed for low flow applications with enhanced measurement precision. Instruction manual 309834. Part of the HG6000 series helical gear flow meters. Flow Range is a generic rating meant to cover a wide variety of materials and applications, but may be different depending on the GRACO system in which the Flow Meter is used.
Reference Manuals
- 300639 (Page 12) Graco PRECISIONFLO LT Brochure
- 336165 (Page 2) Flow Meters Flyer
- 309834 (Page 2) Helical Gear Fluid Flow Meters
- 332083 (Page 18) M4-55 Meter-Mix Dispense Systems
- 332452 (Page 13) ExactaBlend AGP Advanced Glazing Proportioner
