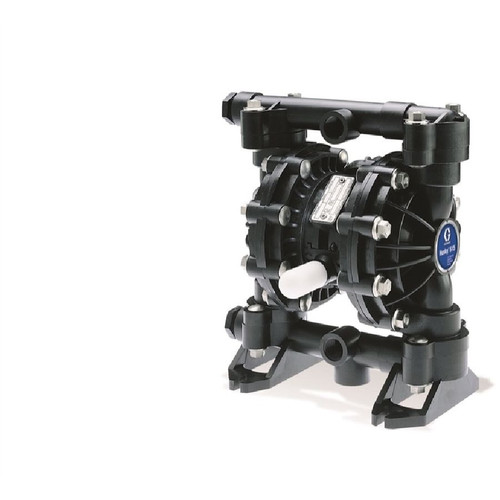

GRACO 246366 Husky 515 Diaphragm Pump with Drum Riser Tube
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
Compatible Equipment
- Husky 515 pump systems
- Standard drum containers
- Two supply pump systems with fluid plumbing
- Industrial spray equipment
- Husky™ 515
Related Parts
- 246367 - Husky 716 diaphragm pump, aluminum clamped design
- 246368 - Husky 1040 diaphragm pump for trailer mounts
- 246481 - Husky 515 supply hose, 3 m x 19 mm
- 246482 - Husky 716 supply hose, 3 m x 19 mm
- 246642 - Stainless Air-Operated Mastic Fluid Pressure Regulator, 3/4", 100-4500 PSI Regulated
- 246369 (Complete Package - fluid and air)
- 246367 (Husky™ 716 pump kit)
- 246368 (Husky™ 1050 pump kit)
Reference Manuals
- 339221 (Page 7) Reactor IP - In-Plant Polyurethane Foam Processing Systems
- 349104 (Page 16) Reactor Parts and Accessories Brochure
- 309815 (Page 2) Reactor Feed Pump Kits, Operation and
- 313997 (Page 16) HFR, Setup-Operation
- 313998 (Page 13) HFR Hydraulic, Fixed-Ratio Proportioner, Repair
Specifications
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Compatible Material | Antifreeze, Detergent, Resin, Polymer, Motor Oil, Gear Oil, Hydraulic Fluid, Automatic Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink and Colorant |
| Fluid Section Material | Carbon Steel |
| Material | Carbon Steel |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (GPM) | 7.5 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.09375 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (psi) | 100 |
| Overall Height (in) | 10.63 |
| Power Source | Air |
| Type | Pneumatic Diaphragm Pump |
