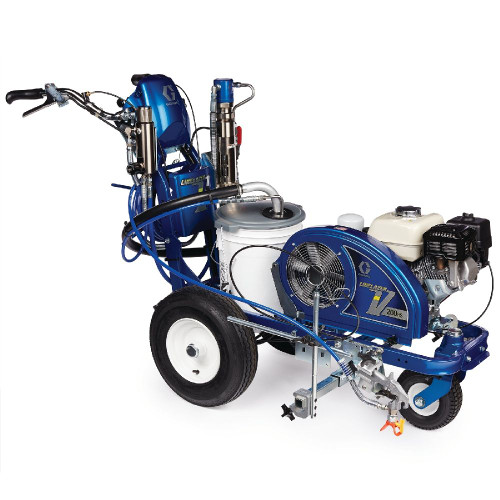

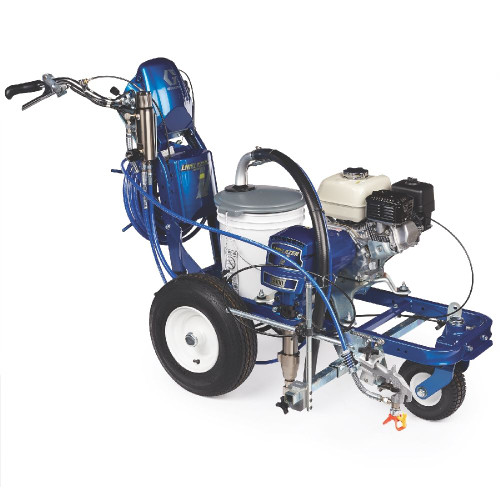

GRACO 17H459 - LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 1 Manual Gun, 3300 PSI

Specifications

• Length: 68.75 in. (174.63 cm) with platform down
• Max Working Pressure: 3300 PSI (228 bar, 22.8 MPa)
• Material: PTFE, Nylon, polyurethane, V-Max, UHMWPE, fluoroelastomer, acetal, leather, tungsten carbide, stainless steel, chrome plating, nickel-plated carbon steel, ceramic
• Series: B
• Gun Type: 1 Manual Gun
• Model Type: Standard
• Height Unpackaged: 44.5 in. (113.03 cm)
• Height Packaged: 52.5 in. (133.35 cm)
• Width Unpackaged: 34.25 in. (87.0 cm)
• Width Packaged: 37.0 in. (93.98 cm)
• Weight Unpackaged: 306 lbs (139 kg)
• Weight Packaged: 373 lbs (169 kg)
• Power Rating: 6.5 HP @ 3600 rpm (4.84 kW @ 3600 rpm)
• Maximum Delivery: 2.15 gpm (8.14 lpm)
• Sound Power: 103.1 dBa
• Sound Pressure: 86.5 dBa
• Vibration Hand Arm: 1.6 m/s²
• Vibration Whole Body: 0.4 m/s²
• Max Tip 1 Gun: .047
• Max Tip 2 Gun: .034
• Inlet Paint Strainer: 16 mesh (1190 micron)
• Outlet Paint Strainer: 50 mesh (297 micron)
• Pump Inlet Size: 1 in. NSPM (m)
• Pump Outlet Size: 3/8 NPT (F)
• Hydraulic Reservoir: 1.25 gallons (4.73 liters)
• Hydraulic Pressure: 1825 PSI (124 bar)
• Electrical Capacity: 84 W @ 3800 rpm
• Battery: 12V, 22Ah, Sealed lead acid, Deep cycle
• Product Line: LineLazer V 200HS
• Configuration: Standard 1 Manual Gun
• Ce Marked: True

Compatible Equipment

• LineLazer V 200HS Standard Series

Related Parts

• 25P342
• 17H461 - LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns
• 25P343
• 17K582
• 17H462 - Linelazer Sprayer, V, 200Hs, Auto, 1A, Lsr, 3300 PSI
• 17K637

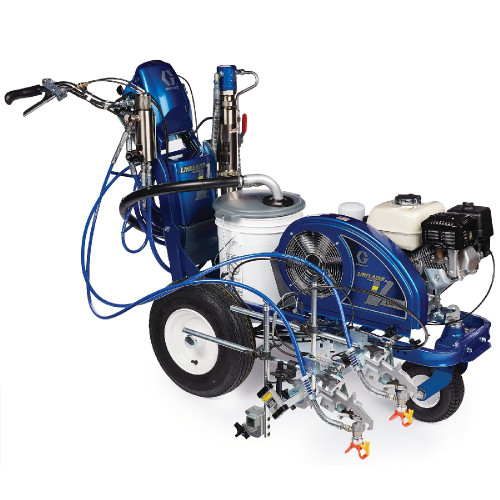

• 17H463 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 1 Auto Gun, 1 Manual Gun, 3300 PSI
• 17K583 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper 2 Auto Guns, 3300 PSI
• 25P344
• 17H464 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 2 Auto Guns

This is a complete LineLazer V line striper model. All auto guns can be actuated manually according to the note at bottom of table. This is a complete line striper unit with gas hydraulic power, not an individual component part Part of the 200HS series, Series B configuration. All auto guns can be actuated manually according to the footnote.

Reference Manuals

• 3A3390 (Page 3) LineLazer V 200HS/200DC Airless Line Stripers, Parts
• 3A3426 (Page 3) LineLazer™ V 200HS & 200DC Airless Line Stripers Standard Series and High Production (HP) Series
