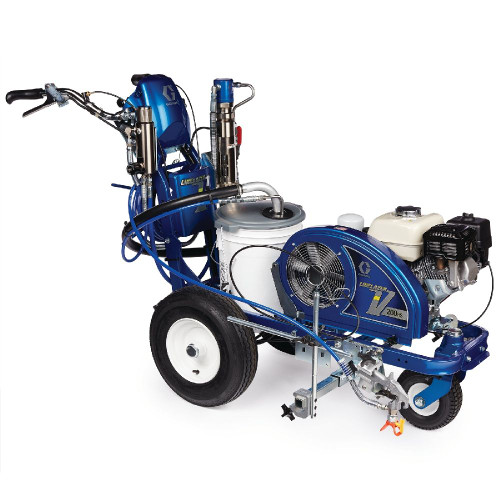

GRACO 17H463 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 1 Auto Gun, 1 Manual Gun, 3300 PSI

The LineLazer V 200HS HP Automatic Series is a high-performance gas hydraulic airless line striper designed for demanding striping applications. Features push button control for automatic operation, reducing operator fatigue and improving productivity. Includes both automatic and manual gun capabilities with valuable job information systems and USB download capability for enhanced project management.

With high production features, the LineLazer V 200HS HP Automatic Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

• Automatic Paint Gun System

  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue — push button line production
  • Quality solenoid driven system
• Auto-Layout II

  • Simplify Parking Lot Layout
  • SmartControl measures while you walk and puts down pre-marks
  • No need for measuring tape, string lines or aerosol cans
  • Cuts your layout time in half
• LiveLook Display with SmartControl

  • Striping Information At-A-Glance
  • Track, measure and control every aspect of your job
  • Accessible proof-of-job data from the J-Log System with USB Download
  • Consistent spraying pressure for perfect lines
• J-Log System with USB Download

  • Valuable Job Information
  • Proof of job = More striping opportunities.
  • USB download capability allows you to capture and save all job data
• Honda GX Engine

  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low
• EasyMark Gun Adjustment System

  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector
• EZ Align Wheel System

  • Perfect Striper Tracking
  • Simple front wheel alignment, no special tools needed
• DualComfort Handlebar System

  • Easy Handlebar Adjustment
• Endurance Chromex Pump

  • Reliable, Long-Life Pump
  • Industry-best pump performance — field-proven design
  • Handle the most demanding materials with long-life rod treatment
  • 4X harder than ordinary chrome
• Additional Features
  • High-Efficiency Hydraulic Motor
  • High-Capacity Cooling System
  • QuikSelect Gun Selector
  • Easy Out Pump Filter
  • LazerGuide 1700 Start/Stop Laser

Additional Specifications

• Max Working Pressure: 3300 PSI maximum tip size 0.047
• Material: Hardened Stainless Steel cylinder
• Pump: Endurance Chromex Pump
• Maximum Psi: 3300 PSI
• Weight: 306 lb Standard Unit, 322 lb HP Automatic Unit
• Gun Support: 1 Gun: 0.047, 2 Guns: 0.034
• Hose Size: 3/8 in x 25 ft
• Applications: Turf and Pavement
• Tracking System: SmartControl
• Fuel Capacity: 0.95 gal
• Type: QuikChange System
• Intake: QuikAccess
• Rod: Chromex
• Packings: V-Max Blue
• Laser Included: with laser

Specifications

Features

• Push button control for automatic operation
• Reduces operator fatigue
• Less layout time with Auto-Layout II feature
• Easy to use - cuts layout time in half
• Exclusive LazerGuide 1700 Start/Stop Laser
• Stay charged with onboard 12V battery power

Applications

• High-production jobs requiring reflective beads
• Large parking lot jobs
• Airports
• City jobs requiring precise lines
• Professional striping operations
• Pavement marking

Compatible Equipment

• LineLazer V 200HS series equipment
• LineLazer RAC 5 tips
• LaserGuide 1700 ScanShop Laser system

Related Parts

• 17H464 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 2 Auto Guns
• 17H461 - LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns
• 17H465 - LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns, Hardened Stainless Steel, 3300 PSI
• 17G231 - TIE,ROD,7.310
• 17G260 - HOSE,SUPPLY, PIVOT
• 17F270
• 17H459 - LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 1 Manual Gun, 3300 PSI
• 25P342
• 25P343
• 17K582

Kit Contents

• Includes all LineLazer V 200HS Standard Series features
• 1 Automatic Gun
• 1 Manual Gun
• Pressurized Bead Tank

Part of the HP Automatic/Reflective Series. Also includes all standard LineLazer V 200HS features like DualComfort Handlebar System, EZ Align Wheel System, EasyMark Gun Adjustment System, QuickSelect Gun Selector, Honda GX Engine, Endurance Chromex Pump, and Easy Out Pump Filter. Part of the LineLazer V 200HS HP Automatic series. Includes both automatic and manual gun capabilities for maximum versatility in line striping applications. This is a complete LineLazer V 200HS model with HP Auto configuration featuring 1 manual gun and 1 auto gun with laser included. All auto guns can be actuated manually according to the note at bottom of table.
