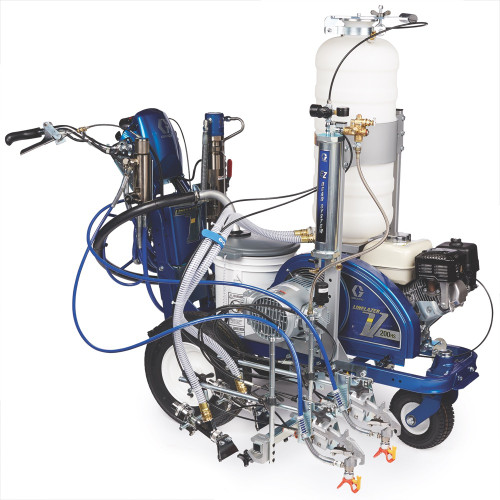

GRACO 17K585 - LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns, 3300 PSI
With high production features and bead capability, the LineLazer V 200HS HP Reflective Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines and reflective beads.
The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
- Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- Additional Features
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- QuikSelect Gun Selector
- Easy Out Pump Filter
Additional Specifications
- Length: 68.75 in. (174.63 cm) unpackaged, 73.5 in. (186.69 cm) packaged
- Max Working Pressure: 3300 PSI (228 bar, 22.8 MPa) maximum working pressure
- Material: PTFE, Nylon, polyurethane, V-Max, UHMWPE, fluoroelastomer, acetal, leather, tungsten carbide, stainless steel, chrome plating, nickel-plated carbon steel, ceramic
- Series: B
- Height: 44.5 in. (113.03 cm) unpackaged, 52.5 in. (133.35 cm) packaged
- Width: 34.25 in. (87.0 cm) unpackaged, 37.0 in. (93.98 cm) packaged
- Weight: 417 lbs (189 kg) unpackaged, 484 lbs (219kg) packaged
- Power Rating: 6.5 HP @ 3600 rpm (4.84 kW @ 3600 rpm)
- Sound Power: 103.1 dBA
- Vibration Hand Arm: 1.6 m/s²
- Vibration Whole Body: 0.4 m/s²
- Pump Inlet Size: 1 in. NSPM (m)
- Hydraulic Reservoir Capacity: 1.25 gallons (4.73 liters)
- Hydraulic Pressure: 1825 PSI (124 bar)
- Electrical Capacity: 84 W @ 3600 rpm
- Battery: 12V, 22Ah, Sealed lead acid, Deep cycle
- Configuration: HP Reflective
| Bead Tank Size (lb) | 120 |
| Compatible Material | Road-Marking Paint |
| Compatible Surfaces | Pavement, Turf |
| Engine Brand | Honda |
| Engine Model | GX200 |
| Fuel Tank Capacity (gal) | 0.95 |
| Gun Activation | Manual, Automatic |
| Includes | Pressurized Bead System, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft (6.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL, 4 oz (118 ml) |
| Maximum Flow Rate (GPM) | 2.15 |
| Maximum Sound Pressure Level (dB(A)) | 86.5 |
| Maximum Tip Size (in) | 0.033 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 2 |
| Number of Pumps | 1 |
| Overall Height (in) | 44.5 |
| Overall Length (in) | 68.75 |
| Overall Width (in) | 34.25 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Power Source | Gas Hydraulic |
| Pump Type | Endurance |
| Series | 200HS |
| Standards Met | CE |
| Type | Walk-Behind Line Striper |
| Weight (lb) | 417 |
| Compatible Material | Road-Marking Paint |
| Compatible Surfaces | Pavement, Turf |
| Engine Brand | Honda |
| Engine Model | GX200 |
| Fuel Tank Capacity (L) | 3.6 |
| Gun Activation | Manual, Automatic |
| Includes | Pressurized Bead System, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft (6.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL, 4 oz (118 ml) |
| Maximum Flow Rate (L/min) | 8.14 |
| Maximum Sound Pressure Level (dB(A)) | 86.5 |
| Maximum Tip Size (cm) | 0.0838 |
| Maximum Tip Size (mm) | 1.194 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 2 |
| Number of Pumps | 1 |
| Overall Height (cm) | 113.03 |
| Overall Height (mm) | 1130.3000 |
| Overall Length (cm) | 174.63 |
| Overall Length (mm) | 1746.25 |
| Overall Width (cm) | 87.0 |
| Overall Width (mm) | 869.9500 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Power Source | Gas Hydraulic |
| Pump Type | Endurance |
| Series | 200HS |
| Standards Met | CE |
| Type | Walk-Behind Line Striper |
| Weight (kg) | 189 |
Compatible Equipment
- LineLazer V 200HS HP Reflective Series
Related Parts
- 17H459 - LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 1 Manual Gun, 3300 PSI
- 25P342
- 17H461 - LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns
- 25P343
- 17K582
- 17H462 - Linelazer Sprayer, V, 200Hs, Auto, 1A, Lsr, 3300 PSI
- 17K637
- 17H463 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 1 Auto Gun, 1 Manual Gun, 3300 PSI
- 17K583 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper 2 Auto Guns, 3300 PSI
- 25P344
All auto guns can be actuated manually. This model features HP (High Pressure) reflective striping capability with 1 automatic gun. Part of the LineLazer V 200HS HP Reflective Series models. All specifications apply to models 17H460, 17J964, 17K585, and 17H465. All auto guns can be actuated manually. This is a complete line striper unit, not a replacement part or kit.
