GRACO 224923 - Inductor Assembly, 1 Qt., Rubber
Rubber wiper plate designed for the DynaMite 190 Pump Unit, engineered to handle 1 quart fluid containers for single component dispensing applications in sealant and adhesive operations.

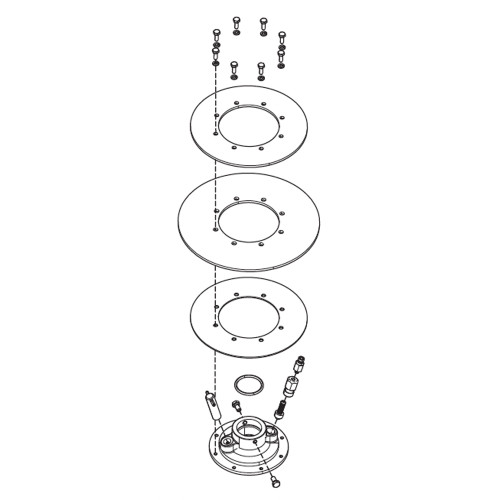

Kit Includes:
Additional Specifications
Specifications
| Part |
Description |
Qty |
| 187596 |
PLATE, inductor |
1 |
| 111639 |
SCREW, cap, hex hd |
2 |
| 223746 |
VALVE, bleed |
1 |
| 187738 |
RING, sst. |
1 |
| 187740 |
WIPER, |
1 |
| 111638 |
SCREW, cap, hex hd |
8 |
| 111637 |
WASHER, lock |
8 |
| 187741 |
RING, backup |
1 |
| 110954† |
PACKING, o-ring |
1 |
| 110932 |
CONNECTOR, male |
1 |
| 187683 |
HOUSING, valve |
1 |
| 224918 |
VALVE, check |
1 |
Features
- Rubber construction for reliable sealing
- Designed specifically for DynaMite 190 systems
- Optimized for 1 quart container applications
Applications
- Sealant dispensing
- Adhesive application
- Single component material handling
Compatible Equipment
Related Parts
- 224908 - Wiper Plate 1 gal (3 kg), rubber
- 235871 - DynaMite 190 Pump unit
- 223948 - Wiper Plate Poly Shields (sets of 10)
Part of the DynaMite 190 system accessories. Alternative gallon size wiper plate (224908) also available for larger volume applications.
Reference Manuals
- 336833 (Page 61) Single Component Catalog - Buyer's Guide and Specifications
