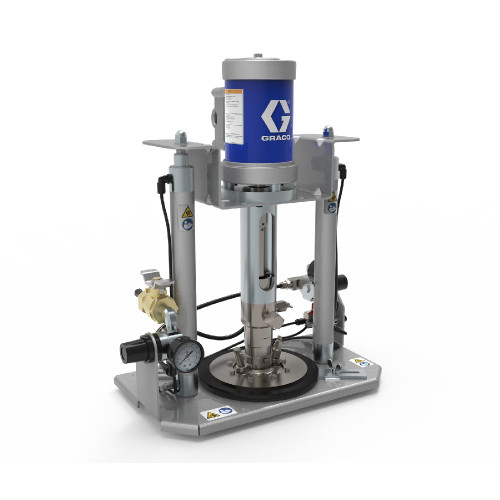

GRACO 235871 - DynaMite 190 Pump Single Component Mini-Extruder for 1 Qt. to 1 Gal. Pails, 304SS, 850 PSI
The DynaMite 190 is a compact, lightweight single component mini-extruder ideal for dispensing viscous materials from small containers (1 qt to 1 gal). Features highly precise fluid delivery and rugged construction for demanding industrial applications. Perfect for manual or automatic valve applications in small manufacturing workcells and industrial workbench environments.
The Dynamite 190 is ideal for pumping low to medium viscosity materials from small containers.
Additional Specifications
- Flow Rate: 20 oz/min maximum
- Max Working Pressure: 850 PSI maximum fluid outlet pressure
- Material: 304 and 17-4 pH SST, PTFE, Viton®, acetal
- Container Size: 1 qt (0.95 l) or 1 gal (3.79 l)
- Type: Single Component Mini Extruder
- Fluid Viscosity Range: 10,000 to 600,000 cps
- Volume Per Stroke: 5.0 cc
- Pump Cycles Per Gallon: 376.5
- Max Pump Speed Intermittent: 60 cpm
- Max Pump Speed Continuous: 40 cpm
- Max Operating Temperature: 140°F (60°C)
- Air Inlet Range: 25 to 100 PSI (1.8 to 7 bar, 0.18 to 0.7 MPa)
- Fluid Inlet Size: 1 gal (3.8 l) or 1 qt (0.95 l) cans
- Air Inlet Size: 8mm (/)
- Weight: 8.4 kg
- Width: 14.0 in (356 mm)
- Depth: 8.25 in (210 mm)
- Max Height: 26.5 in (673 mm) with ram cylinder extended
- Maximum Fluid Viscosity: 600,000 cps
- Maximum Air Input Pressure: 100 PSI (0.7 MPa, 7 bar)
- Recommended Pump Speed Continuous: 40 cycles per minutes (cpm)
- Maximum Recommended Pump Speed: 60 cpm
- Maximum Pump Operating Temperature: 140° F (60° C)
- Certification: CE, RoHS
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Control Options | Standard |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Material Container Volume (gal) | 1 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 140 |
| Maximum Fluid Pressure (psi) | 0 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Working Pressure (MPa) | 8.3 |
| Maximum Working Pressure (psi) | 1200 |
| Model | DynaMite |
| Number of Wipers | Single Ring |
| Power Type | Pneumatic |
| Pump Type | Piston |
| Seal Material | Tivar Ceram-P |
| Series | 190 |
| Sound Pressure Level (dB(A)) | 76.5 |
| Type | Supply Unit |
| Weight (lb) | 18.5 |
| Wetted Material | 304 Stainless Steel, PTFE, Fluoroelastomer, PEEK |
| Wiper Material | Rubber |
Features
- Extrudes viscous material from original 1 qt or 1 gal source containers
- Compact and lightweight design
- Highly precise fluid delivery
- Built tough for rugged conditions
- Single component operation
- Single component mini extruder design
Applications
- Dispensing viscous fluids and pastes
- Manual or automatic valve applications
- Small manufacturing workcells
- Industrial workbench applications
- Adhesive dispensing
- Sealant application
Compatible Equipment
- 1 qt (0.95 l) containers
- 1 gal (3.79 l) containers
- 1 gal (3.8 l) cans
- 1 qt (0.95 l) cans
- 1K Ultralite dispensing valves
- iQ Valve systems
Related Parts
- 224908 - Inductor Assembly, 1 Gal
- 224923 - Wiper Plate 1 qt (1 kg), rubber
- 224908 - Wiper Plate 1 gal (3 kg), rubber
- 235877 - DynaMite 190 Dispense Valve
- 235871 - DynaMite 190 Dispense Valve
- 223948 - Wiper Plate Poly Shields (sets of 10)
- 25T471
- 25T472 - DynaMite Supply Pump for 600cc cartridges, 2200 PSI
Kit Contents
Handles various viscous fluids including adhesives, encapsulants, greases, colorants, potting compounds, sealants, and inks. System shown includes wiper plate accessory. Pump unit sold without wiper plate - order wiper plate separately. Instruction manual 308302. Part of the DynaMite supply system family. Compatible with various GRACO dispensing systems and valves as shown in system recommendation diagram.
Reference Manuals
- 336833 (Page 60) Single Component Catalog - Buyer's Guide and Specifications
- 350423 (Page 2) DYNAMITE SUPPLY PUMPS
- 309790 (Page 67) 8900 Proportioner
- 3A0987 (Page 28) PD44 Metering Valves and Feed Systems, Parts
