GRACO 226018 - Fire-Ball 425 Series 50:1 400 lb. Grease Pump Stationary Supply Topper-Inductor Package, 4000 PSI

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Additional Specifications

• Max Working Pressure: 4000 PSI (27.6 MPa, 276 bar) Maximum Working Pressure
• Pump Type: President Pump
• Max Air Pressure: 80 PSI (0.55 MPa, 5.5 bar)

Compatible Equipment

• Topper Units
• Grease dispense units with pneumatic pump elevator
• Models 226013 - Fire-Ball 300 Series 50:1 400 lb. Grease Pump Stationary Supply Topper-Inductor Package, 226018 - Fire-Ball 425 Series 50:1 400 lb. Grease Pump Stationary Supply Topper-Inductor Package, 244637 - Fire-Ball 425 Series 75:1 400 lb. (181 kg) 1/2" x 6 ft. (1.83 m) Grease Pump Stationary Inductor Package, 204490

Related Parts

• 226013 - Fire-Ball 300 Series 50:1 400 lb. Grease Pump Stationary Supply Topper-Inductor Package
• 244637 - Fire-Ball 425 Series 75:1 400 lb. (181 kg) 1/2" x 6 ft. (1.83 m) Grease Pump Stationary Inductor Package
• 25P544 - GT 750 36:1 Grease Transfer Topper-Inductor Package for 400 lb (180 kg) drums

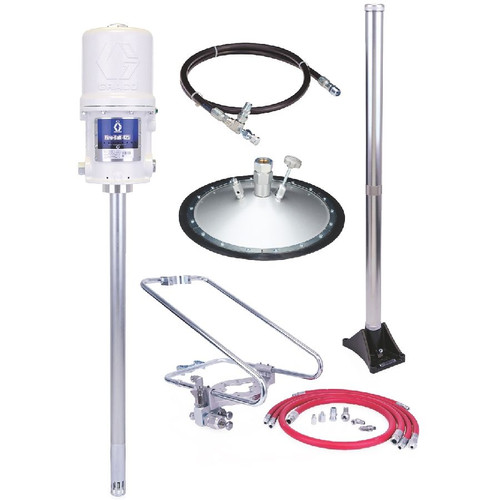

Kit Contents

• 205699 - INDUCTOR PLATE ASSEMBLY
• 204461 - WISHBONE SUPPORT ASSEMBLY
• 204385 - PNEUMATIC ELEVATOR
• 205102 - HOSE KIT
• 205339 - ELEVATOR BASE
• 205395 - 50:1 RATIO PRESIDENT PUMP

Grease dispense unit with pneumatic pump elevator for easy drum replacement. For professional use only. This appears to be a pump model that follows the same installation procedure as other models in the 226013/226018/244637/204490 series. Installation involves attaching hex nipple (115 or 99) from outlet hose kit (91 or 97) to pump outlet, connecting swivel union (96) to adapter with valve (94) opening facing downward, and installing user-supplied pressure rated fluid shutoff valve. Model 226018 includes items 21, 25, 90, 97, 101, and 106. References manual 306674 for pump parts. This appears to be a complete pump assembly system.

Reference Manuals

• 306556 (Page 1) Topper Units
