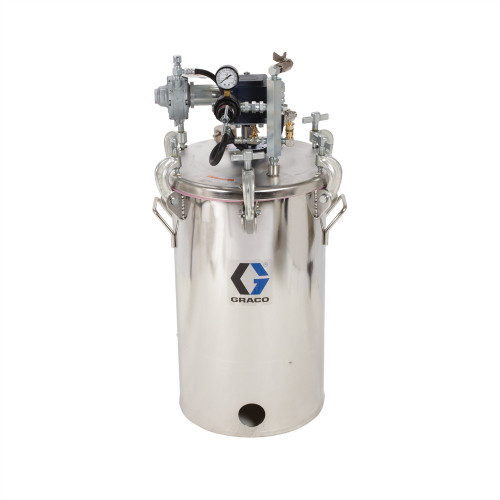

GRACO 236152 - 5 Gallon Stainless Steel High-Pressure Pot, w/ Agitator, 100 PSI, ASME

The GRACO 236152 is a 5-gallon (19 L) stainless steel high-pressure tank with an agitator, rated to 100 PSI maximum working pressure. The stainless steel construction is compatible with a wide range of materials and can be used for stand-alone spraying, material/catalyst supply, or as a reservoir for moisture-sensitive materials. The integrated agitator keeps material mixed during use.

Features

• ASME rated to meet factory standards
• Precision welded with electroplated surfaces that prevent debris build-up and keep your operation free of contaminants
• High-quality stainless steel design compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture-sensitive material reservoir

Specifications

Compatible Equipment

• 235042 - Gun Air Regulator Kit, for 2, 5, 10, 15 Gallon pressure pots (optional add-on)
• Spray adhesive systems
• HVLP and conventional spray equipment

Related Parts

• 236149 - 5 Gallon High-Pressure Pot, 100 PSI, without agitator (65 lb)
• 236146 - 5 Gallon Low-Pressure (HVLP) Pot w/ Agitator, 15 PSI (74 lb)
• 236143 - 5 Gallon Low-Pressure (HVLP) Pot, 15 PSI (65 lb)
• 236087 - Bare tank (pot, lid, gasket only)
• 244147 - Supply tank (pot, lid, gasket, plugs, fill port cap, pick-up tube, liner)
• 236677 - Bottom outlet kit
• 15D059 - Tank liner (Qty 20)
• 186517 - Stainless steel paddle kit
• 117571 - Standard Santoprene gasket
• 117574 - Premium PTFE-coated gasket

Reference Manuals

• 345020 (Page 5) - Finishing Accessories
• 345078 (Page 4) - Spray Adhesives Equipment
• 3J0419 (Page 10) - Long-Line Striping Truck Solutions
• 308369 (Page 2) - Stainless Steel 5, 10, 15-Gallon Pressure Tanks
