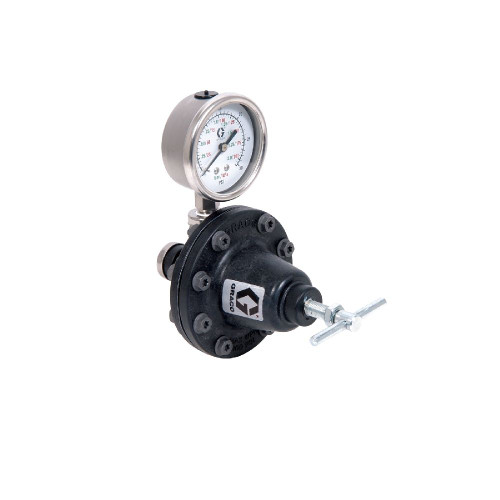

GRACO 236216 - Low Pressure Lightweight Fluid Regulator, 3-30 PSI, 0.5 GPM, Acetal, Spring, 1/4(f) x 1/4(f), 1/4(f) Port

Low pressure lightweight composite fluid pressure regulator designed for waterborne materials with excellent wear resistance and automation capabilities. Features lightweight composite construction compatible with waterborne coatings, PTFE/stainless steel seat with carbide ball for durability, and pressure adjustment key with locking mechanism to protect production settings.

Specifications

• Flow Rate: 0.50 GPM max
• Thread: 1/4 F
• Max Working Pressure: 100 PSI max
• Material: Acetal
• Gauge: 1/4 F
• Pressure Range: 20-100 PSI
• Max Viscosity: 1000 CPS
• Type: Spring operated
• Inlet: 1/4 F
• Outlet: 1/4 F
• Gauge Port: 1/4 F
• Gauge Included: No
• Regulated Pressure: 1-7 bar (20-100 psi)
• Inlet Outlet: 1/4 F
• Includes Gauge: Yes

Features

• Spring-loaded pressure control for consistent regulation
• Acetal construction for chemical resistance and lightweight operation
• 20-100 PSI operating range for low pressure applications
• 1/4 F NPT connections for easy installation
• Handles up to 1000 CPS viscosity materials
• 0.50 GPM maximum flow capacity

Applications

• Low pressure spray finishing systems
• Precision fluid dispensing applications
• Chemical resistant coating applications
• Lightweight portable spray systems
• Low pressure spray finishing applications
• Fluid pressure regulation in coating systems

Compatible Equipment

• Low pressure spray equipment
• Manual spray systems
• Finishing equipment requiring regulated fluid pressure

Related Parts

• 236449 - Low Pressure Lightweight Fluid Regulator, Gauge, 3-30 PSI, 0.5 GPM, Acetal, Spring, 1/4(F) x 1/4(F), 1/4(F) Port
• 241976 - Low Pressure Lightweight Fluid Regulator, 3-30 psi, 0.5 gpm, Acetal, Air, 1/4(f) x 1/4(f), 1/4(f) Port
• 236281 - Low Pressure Lightweight Fluid Regulator, Gauge, 3-100 PSI, 0.5 GPM, Acetal, Spring, 1/4(F) x 1/4(m), 1/4(F) Port
• 236450 - Low Pressure Lightweight Fluid Regulator, Gauge, 20-100 psi, 0.5 gpm, Acetal, Spring, 1/4(f) x 1/4(f), 1/4(f) Port

Part of composite construction series with instruction manual 308325. Gauge sold separately. Part of the Low Pressure Lightweight (6.8 bar) regulator family, designed for manual operation with acetal wetted parts and includes gauge Part of GRACO's Low Pressure Lightweight Composite Fluid Pressure Regulator family. Instruction manual 308325 available for composite construction models.

Reference Manuals

• 336834 (Page 1) Fluid Regulators List
• 345020 (Page 37) Finishing Accessories
• 308325 (Page 1) Fluid Pressure Regulators
