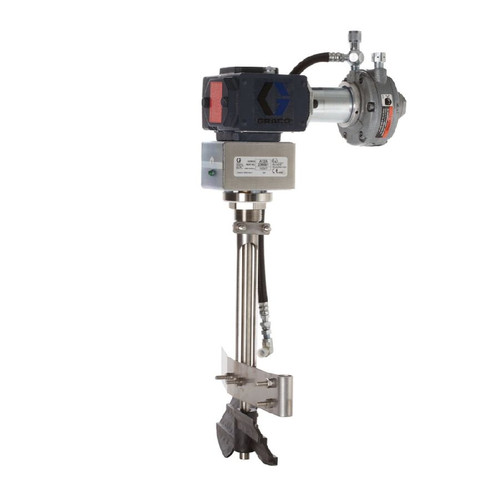

GRACO 236661 - 5 Gallon Heavy Duty Pressure Tank Agitator, air driven, 1/2 HP, 15" Length, gear reduced, 304SS
Heavy duty pressure tank agitator designed for mixing high viscosity materials with 20:1 gear reduction for efficient low-speed operation. Features sealed agitator shaft to prevent air leakage and contamination, with built-in baffle and support system for optimal mixing performance in GRACO pressure tanks.
Features:
Waterborne compatible
- 20:1 gear reduction to mix high viscosity materials, even at low speeds
- Sealed agitator shaft to prevent air leakage and contamination
- Built-in baffle and support for efficient mixing
- Compatible with Graco pressure tanks
Additional Specifications
- Ratio: 20:1 gear reduction
- Length: 38 cm (15 in)
- Material: 304/316 SST
- Drive: Air
- Horsepower: 1/2 HP
| For Use With | 5 Gallon (19 Litre) Pressure Tank |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 3000 |
| Maximum Viscosity (cP) | 800 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Power Rating (HP) | 0.50 |
| Type | Agitator |
| Weight (lb) | 21 |
| Wetted Material | Stainless Steel, PTFE, Zytel, Bronze |
Features
- Agitator assembly for pressure tanks
- Ensures proper material mixing
- Compatible with GRACO pressure pot systems
- Compatible with replacement air motor 162425
- 20:1 gear reduction to mix high viscosity materials, even at low speeds
- Sealed agitator shaft to prevent air leakage and contamination
Applications
- Stand-alone spraying operations
- Material/catalyst supply systems
- Moisture sensitive material reservoir applications
- Drum agitation
- Paint and coating mixing
- Mixing high viscosity materials
Compatible Equipment
- 19 liter (5 gallon) pressure pots with agitators
- Models 236146 - 5 Gal. Low Pressure HVLP Pot w/ Agitator, Regulated to 15 PSI, ASME Rated, 30.5", 74 lbs, SST
- 236152 - 5 Gal. High Pressure HVLP Pot w/ Agitator, Regulated to 100 PSI, ASME Rated, 30.5", 74 lbs, SST, Heavy-duty back-geared pressure tank models
- Air Motor 162425 - SS, Heavy-Duty Agitator Air Motor, Compatible w/ 5, 10 &15 Gallon drum size, GRACO's 5, 10 and 15 gal ASME pressure tanks
Related Parts
- 236087 - Bare tank (pot, lid, gasket only)
- 244147 - Supply tank (pot, lid, gasket, plugs, fill port cap, pick-up tube, liner)
- 236677 - Bottom outlet kit
- 15D059 - Tank liner (Qty 20)
- 186517 - Stainless steel paddle kit
- 117571 - Standard Santoprene gasket
- 117574 - Premium PTFE coated gasket
- 236146 - 5 Gal. Low Pressure HVLP Pot w/ Agitator, Regulated to 15 PSI, ASME Rated, 30.5", 74 lbs, SST
- 236147 - 10 Gal. Low Pressure HVLP Pot w/ Agitator, Regulated to 15 PSI, ASME Rated, 33.9", 85 lbs, SST
- 236148 - 15 Gal. Low Pressure HVLP Pot w/ Agitator, Regulated to 15 PSI, ASME Rated, 44.6", 101 lbs, SST
This agitator assembly is specifically mentioned for use with pressure tanks that feature agitators. All 19, 38, 57 l (5, 10 and 15 gal) pressure tanks with agitators feature heavy-duty back-geared models. New optional Gun Air Regulator Kit (235042) can be added to all tanks. This page only shows compatibility information. Part 236661 is listed as compatible with air motor 162425 along with other agitators in the 236xxx series. Only use on GRACO's 5, 10 and 15 gal ASME pressure tanks. Manual reference: 308371
Reference Manuals
- 345020 (Page 5) Finishing Accessories
- 308369 (Page 12) Stainless Steel 5, 10, 15-Gallon Pressure Tanks
- 308371 (Page 1) Heavy-Duty Stainless Steel Agitators
- 3A4797 (Page 23) Stainless Steel, Air-Driven Agitators with Pressure Tank
