GRACO 244681 - Husky 515 Dual Inlet Bulk Anti-Freeze & Windshield Solvent Transfer, 100 PSI
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Operates on as little as 20 PSI (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Reliable air valve for years of dependable performance

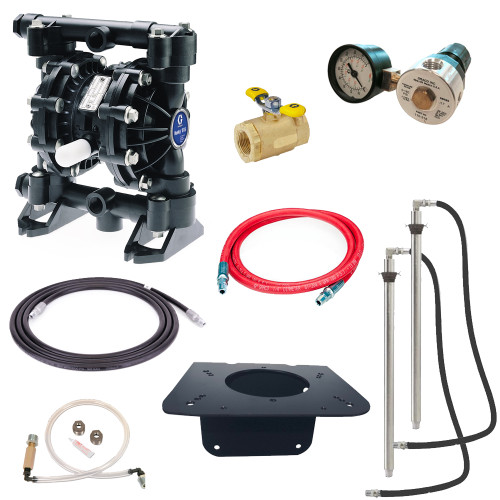

Kit Includes:
- GRACO 243669 - Husky 515 Air-Operated Double Diaphragm Transfer Pump for 50/50 Windshield
- GRACO 110147 - 1/4" NPT Air Regulator & Gauge
- GRACO 109105 - 3/4" x 6ft Hose 2250 PSI
- GRACO 109125 - Air Connection Hose 1/4" NPT(M) x 6ft
- GRACO 110223 - Bleed-Type Air Shut-Off Valve, 1/4" NPT
- GRACO 224835 - Wall Mounting Bracket
- GRACO 236054 - 6' Suction Kit for 55 Gal. Drums (2 kits)
- GRACO 238428 - Thermal Relief Kit
- GRACO 309353 - Instruction Manual
Additional Specifications
- Max Working Pressure: 100 PSI (0.7 MPa, 7 bar) Maximum Air Working Pressure, 100 PSI (0.7 MPa, 7 bar) Maximum Fluid Working Pressure
- Model Type: Air-Operated Double Diaphragm Bulk Transfer Package
- Inlet Type: Dual Inlet
| Application |
Industrial |
| Compatible Material |
Antifreeze, Windshield Washer Fluid |
| Fluid Inlet Size (in) |
3/4 |
| Fluid Inlet Thread Gender |
Female |
| Fluid Inlet Thread Type |
NPT |
| Fluid Outlet Size (in) |
1/2 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| For Use With |
Anti-Freeze, Windshield Solvent |
| Includes |
AODD Pump, Air Regulator, Fluid Connect Hose, Air Connect Hose, Air Shut-Off Valve, Wall Mount Bracket, Suction Kit, Thermal Relief Kit |
| Inlet Thread Gender |
Female |
| Inlet Thread Type |
NPT |
| Material |
Acetal, Buna-N |
| Maximum Air Pressure (psi) |
100 |
| Maximum Cycle Rate (CPM) |
400 |
| Maximum Flow Rate (GPM) |
15 |
| Maximum Fluid Pressure (MPa) |
0.7 |
| Maximum Fluid Pressure (psi) |
100 |
| Maximum Solid Size (in) |
0.09375 |
| Series |
515 |
| Type |
Diaphragm Pump Package |
Compatible Equipment
- Husky 515 Air-Operated Dual Inlet Diaphragm Pump
- Models 244681 - Husky 515 Dual Inlet Bulk Anti-Freeze & Windshield Solvent Transfer
Related Parts
- 244680 - Husky 1050 – Single Inlet Bulk Antifreeze & Windshield Solvent Transfer Package
- 244682 - Husky 716 Single Inlet Antifreeze & Windshield Solvent Transfer Package
- 647016 - Husky 1050 Air-Operated Double Diaphragm Transfer Pump – 1" AL/TPE for Water, Antifreeze & Fuel Transfer
- 241906 - Husky 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation/Transfer, Water, Antifreeze, Windshield Wash Fluid
- 244844 - Air Regulator to Control Pump Speed & Pressure, 1/2" NPT, 0-200 PSI Gauge
- 110147 - Zinc Air Pressure Regulator w/ Gauge, 1/4" NPT, 0-125 PSI (0-8.6 Bar)
- 238428 - Thermal Relief Kit, 150 to 180 PSI (1.03 to 1.4 MPa, 10.3 to 14 Bar)
- 156684 - Adapter Union Fitting, 1/2 NPT Rigid to 1/2 NPT Swivel
- 156823 - Airless Union Fitting, 1/4" NPT(M) x 1/4" NPSM(F), 5000 PSI (345 Bar
For dispensing non-corrosive and non-abrasive oils and lubricants only. For professional use only. Not approved for use in European explosive atmosphere locations. Related manual: 309204 - Husky 515 Air-Operated Dual Inlet Diaphragm Pump This is referenced as part 1 in the assembly diagram. The manual indicates there are related manuals on page 1. Model 244681 requires thermal relief kit (238428) and bushing (100081) to be installed at center fluid outlet port of pump.
Reference Manuals
- 309353 (Page 1) Air-Operated Double Diaphragm Bulk Transfer Packages
