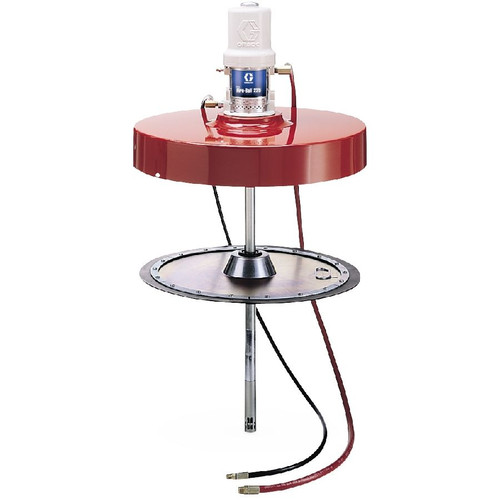

Use our handy finder to find the exact model for your needs.GRACO 246917 - Mini Fire-Ball 225, 50:1 400 lb. Grease Pump Stationary Supply Package
You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
Package Includes:
Additional Specifications
| Air Inlet Size (in) | 0.375 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Grease |
| Fluid Inlet Type | Slotted |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Mini Fireball 50:1 225 Pump, Hose and Fitting Kit, Cover, Follow Plate, Shim |
| Maximum Air Working Pressure | 140 |
| Maximum Working Pressure (MPa) | 35 |
| Maximum Working Pressure (psi) | 5000 |
| Motor Type | Pneumatic |
| Mount Location | Drum Mount |
| Power Type | Pneumatic |
| Pump Ratio | 50:1 |
| Pump Weight (lb) | 15 |
| Series | 225 |
| Type | Piston Pump Package |
| Wetted Material | Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin |
Compatible Equipment
Related Parts
This is a 400 lb capacity model that includes Hose/Fitting Kit 222072, with cover part 200326 and follow plate 24F903. Related model 253390† is CE/UKCA certified. This appears to be the main pump component. Reference manual 309966 for detailed parts breakdown. Has associated follow plate part 24F903.
