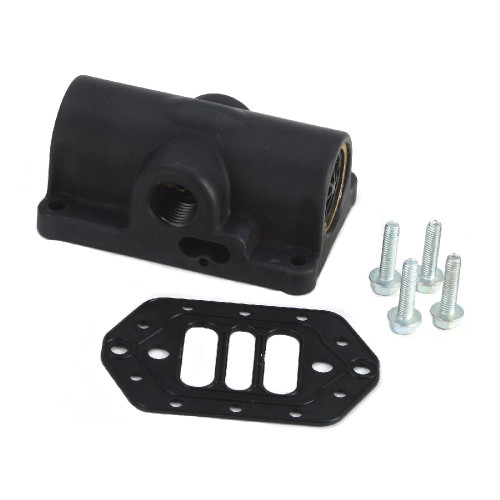

GRACO 24A351 - Complete Air Valve Replacement Kit, Standard, for models w/ no DataTrak or DataTrak w/ cycle count only

Compatible Equipment

• M02xxx
• M04xxx
• M07xxx
• M12xxx
• M18xxx
• M34xxx

Related Parts

• 24A353 - Complete Air Valve Replacement Kit, Compatible w/ DataTrak w/ Runaway Protection
• 24A352 - Complete Air Valve Replacement Kit, Standard, for models w/ no DataTrak or DataTrak w/ cycle count only
• 24A354 - Complete Air Valve Replacement Kit, Compatible w/ DataTrak w/ Runaway Protection
• 24A366 - Kit, Motor, Pilot Valve
• 24G693 - Complete 2.5 in Merkur ES Air Motor Repair Kit, 2-1/2"
• 24G694 - Complete 3.5 in Merkur ES Air Motor Repair Kit, 3.5"
• 24G695 - Kit, 2.5"Lower Cover, Merkur Es
• 24G696 - Merkur ES 3.5 Lower Cover Kit, 3.5"
• 24G697 - Kit, 2.5" Piston, Merkur Es

Kit Contents

• 209 - GASKET, air valve (qty 4)
• 211 - SCREW, M6 x 25 (qty 4)

This is the standard air valve used across all motor models (M02xxx through M34xxx) for equipment with no DataTrak or DataTrak with cycle count only. Related parts include 24A353 (Compatible with DataTrak with Runaway Protection), 24A352 (standard version), 24A354 (DataTrak compatible), and 262608 (Park - lowers to down position for cycle count only, specific to M12xxx models). This is a complete air valve replacement kit for standard applications without DataTrak or with DataTrak cycle count only functionality. Different part numbers (24A352, 24A354) are used for other model series (M07xxx, M12xxx, M18xxx, M34xxx). Reference number 214 in the parts table. Same part number used for both 2.5 in. and 3.5 in. motor models.

Reference Manuals

• 312796 (Page 17) NXT Air Motor and
• 3A0732 (Page 37) Merkur ES Spray Packages
• 3A2315 (Page 22) FRP Air Motor
• 3A3442 (Page 13) NXT Air Motor, Instructions-Parts-Repair Manual
• 3A3948 (Page 39) Python Chemical Injection Pump
