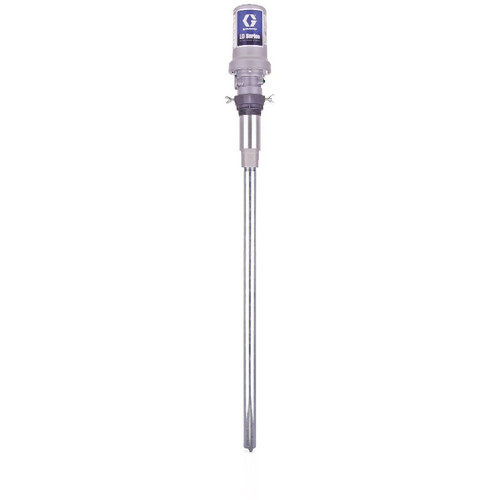

GRACO 24G595 - LD 5:1 Oil Pump w/ 55 Gallon Steel Down Tube & Bung Adapter - BSPP, 150 PSI

Specifications

• Max Working Pressure: 150 PSI max air pressure, 750 PSI max fluid pressure
• Material: metal
• Pump Ratio: 5:1
• Max Air Pressure Mpa: 1.03
• Max Air Pressure Bar: 10.3
• Max Fluid Pressure Mpa: 5.17
• Max Fluid Pressure Bar: 51.7
• Air Inlet: 1/4"-19 BSPP
• Fluid Inlet: 1-11 BSPP
• Fluid Outlet: 1/2"-14 BSPP
• Bung Adapter: 2" NPT(m)

Compatible Equipment

• 200L (55gal) drum
• 24G583 - LD 3:1 Oil Pump w/ 55 Gallon Down Tube & Bung Adapter - BSPP, Metal, 150 PSI
• 24G595 - LD 5:1 Oil Pump w/ 55 Gallon Steel Down Tube & Bung Adapter - BSPP, 150 PSI

Related Parts

• 24G594 - LD 5:1 Oil Pump w/ 55 Gallon Steel Down Tube & Bung Adapter - NPT, 750 PSI
• 24G596
• 24G588 - LD Series 5:1 Universal Oil Pump w/ Bung Adapter - NPT
• 24G589 - LD Series 5:1 Universal Oil Pump w/ Bung Adapter - BSPP, 150 PSI
• 24G590 - LD Series 5:1 Universal Oil Pump w/ Bung Adapter - BSPT, 150 PSI
• 24G591 - LD 5:1 Oil Pump w/ Cut-to-Length PVC Down Tube & Bung Adapter - NPT, 150 PSI
• 24G592
• 24G593 - LD 5:1 Oil Pump w/ Cut-to-Length Steel Down Tube & Bung Adapter - BSPT, 150 PSI, 1/4"-19 BSPT
• 24G597 - LD 5:1 Oil Pump w/ 275 Gallon Steel Down Tube & Bung Adapter - NPT, 150 PSI
• 24G598 - LD 5:1 Oil Pump w/ 275 Gallon Steel Down Tube & Bung Adapter - BSPP, 150 PSI

Kit Contents

• universal pump
• down tube

Includes universal pump and down tube, packaged separately. All oil models include a 2" NPT(m) bung adapter. This page shows 24G595 as compatible with metal tube part 16F950. The page header indicates this covers 3:1 Oil Pump Models 24G576-24G587 and 5:1 Oil Pump Models 24G588-24G599, so 24G595 falls in the 5:1 oil pump model range.

Reference Manuals

• 3A1334 (Page 2) LD Series Oil and Grease Pump
