GRACO 24Z988 - T3 Package: Includes 2 Pumps (Stainless Steel) & 2 Supply hoses, 100 PSI
T3 pump package designed for professional fluid transfer applications, featuring two high-performance stainless steel transfer pumps with complete fluid supply system for efficient material handling

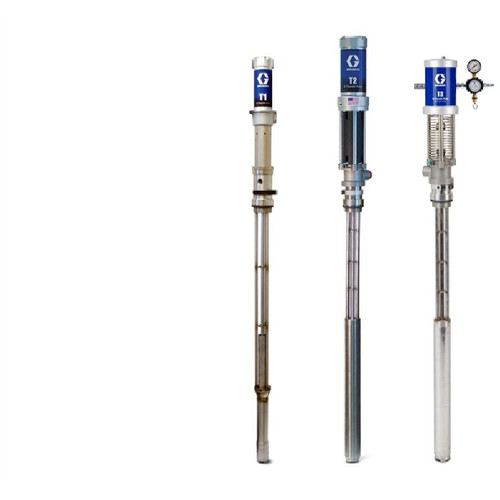

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco’s proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required.
Additional Specifications
- Flow Rate: 17 lpm (4.5 gpm)
- Max Working Pressure: 100 PSI (0.69 MPa, 6.9 bar) air input / 315 PSI (2.17 MPa, 21.7 bar) fluid working pressure
- Max Output Continuous: 17 lpm (4.5 gpm)
- Max Input Air Pressure: 6.8 bar (100 PSI, 0.68 MPa)
- Max Output Fluid Pressure: 21.7 bar (315 PSI, 2.17 MPa)
- Max Ambient Temp: 49°C (120°F)
- Max Fluid Temp: 88°C (190°F)
- Weight: 10 kg
- Height: 128 cm (50.3 in)
- Maximum Air Input Pressure: 100 PSI (0.69 MPa, 6.9 bar)
- Maximum Fluid Working Pressure: 315 PSI (2.17 MPa, 21.7 bar)
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Polyurethane Foam, Polyurea |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Fluid Supply Kit, Air Hose Kit |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Working Pressure (MPa) | 2.2 |
| Maximum Working Pressure (psi) | 315 |
| Model | T3 |
| Package Options | Supply Hose |
| Pump Ratio | 3:1 |
| Type | Pneumatic Piston Pump |
| Weight (lb) | 22 |
| Wetted Material | Stainless Steel |
Features
- Dual pump configuration for increased productivity
- Stainless steel construction for durability and corrosion resistance
- Complete fluid supply kit included
- 3:1 pump ratio for efficient performance
- High temperature capability up to 88°C (190°F)
- Complete T2 pump system
Applications
- Professional fluid transfer operations
- Industrial material handling
- High-volume pumping applications
- Professional spray applications
- Material transfer systems
- Applications requiring consistent dual pump operation
Compatible Equipment
Related Parts
- 26A304 - T3 Supply Pump (SS): 3:1 Fluid to Air Ratio, 100 PSI
- 24Z987 - T3 Complete Package: Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply Kit & Desicant Dryer kit, 315 PSI
- 24Z834 - T3 Supply Pump (Carbon Steel): 3:1 Fluid to Air Ratio, 315 PSI
- 25D296 - T3 Package: Includes 2 Pumps (Carbon Steel) & 2 Supply Hoses, 21.7 bar (315 psi,
- 25D295 - T3 Complete Package: Includes 2 Pumps (Carbon Steel), 2 Supply Hoses, Air Supply Kit & Desicant Dryer Kit, 315 PSI
- 247956 - T1 Package: Includes 2 Pumps (Stainless) & 2 Supply Hoses, 25 Bar Fluid Pressure
- 246081 - T2 Complete Package: Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply Kit & Desicant Dryer Kit
- 246655 - Triton Air/Fluid Comp Kit, Maximum Air Input Pressure: 115 PSI (0.8 MPa, 8 Bar)
- 246375 - Complete Husky H716 Air/Fluid Pump System
Kit Contents
- 26A304 - T3 pump (2 units)
- Fluid supply kit
This is a complete package solution that includes 2 pumps and fluid supply kit, part of the T3 stainless steel transfer pump family Part of the complete supply pump systems family - appears to be a T2 system variant with supply hoses included This is a pump kit (1 pump and riser tube) as opposed to the complete package which includes fluid and air
Reference Manuals
- 300767 (Page 3) T1/T2/T3/T4 Transfer Pumps
- 349104 (Page 16) Reactor Parts and Accessories Brochure
- 309815 (Page 2) Reactor Feed Pump Kits, Operation and
- 3A5180 (Page 2) T3 3:1 Ratio Transfer Pump, Instructions, EN
