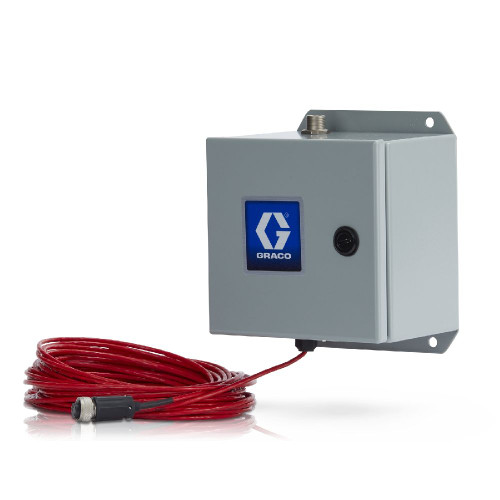

GRACO 25B223 - Pro Dispense Hazardous Location I.S. Barrier Kit, 2 barriers, Intrinsically safe solenoid Valve
Meter and Solenoid Barrier Assembly - includes all components of the 25E765 assembly plus a DIN rail-mounted solenoid barrier; 36 in. of input cable; an additional 50 ft. of safe-side cable to route to the solenoid mounted in the hazardous location; strain-relief fittings at the enclosure for cable management; a 24 VDC Class I, Div 1 solenoid valve (MAC 411 valve) with fittings and wire splices
Specifications
- Safety Rating: Intrinsically Safe (I.S.)
- Barriers Included: 2
- Input Cable Length: 36 inches
- Safe Side Cable Length: 50 feet
- Solenoid Voltage: 24 VDC
- Hazardous Classification: Class I, Div 1
- Valve Type: MAC 411 valve
Features
- Two I.S. power barriers for complete system isolation
- Intrinsically safe solenoid valve included
- Designed for hazardous location applications
- Powers both meter and solenoid valve safely
Applications
- Hazardous location dispensing
- Explosive environment fluid handling
- Chemical processing facilities
- Fuel dispensing systems
- Industrial applications requiring intrinsic safety
Compatible Equipment
- ProDispense systems
- GRACO dispensing meters
- Hazardous location dispensing equipment
- ProDispense systems in hazardous locations
- GRACO ProDispense system
- GRACO meter sensor
Related Parts
- 25E765 - Single barrier kit for meter only
- 26A243 - Upgrade junction box kit
- 26C266 - Hazardous Location Wireless Remote
- 25E765 - Meter Barrier Enclosure Assembly
- 25E765 - Meter Barrier Assembly
Kit Contents
- Two I.S. power barriers
- Intrinsically safe solenoid valve
- All components of 25E765 assembly
- DIN rail-mounted solenoid barrier
- 36 in. input cable
- 50 ft. safe-side cable
- Strain-relief fittings
- 24 VDC Class I, Div 1 solenoid valve (MAC 411)
- Fittings and wire splices
This is a complete two-barrier system compared to 25E765 which only provides a single barrier for the meter Component that allows the installation of a ProDispense user-interface and fluid control in a hazardous location. For professional use only. The MAC 411 valve is approved for North American Class I, Div 1 installations only. Uses R. STAHL's safety barrier technology for field devices. Approved for installation in Class I, Div 1, or Class I, Zone 0 hazardous locations.
Reference Manuals
- 345097 (Page 9) PRODISPENSE
- 3A6715 (Page 1) Haz Loc Wireless Remote & Meter/Solenoid Barriers, Accessory
