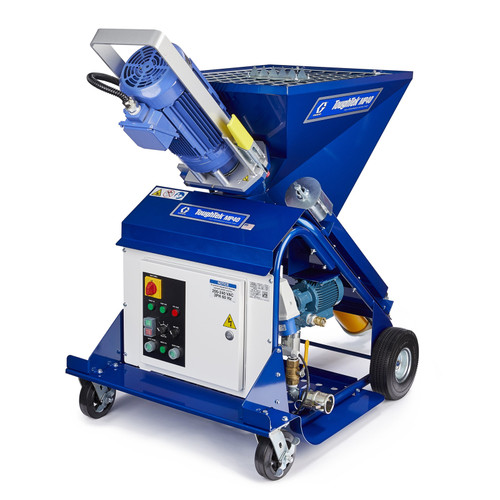

GRACO 25M162 - ToughTek MP40 Mixing Pump Package, Water Based Materials, 300 PSI

Complete ToughTek MP40 package with integrated mixer and powerful rotor stator pumping system for maximum productivity on big jobs. This all-in-one unit eliminates the need for multiple pieces of equipment and associated labor, featuring GRACO's innovative 2-part rotor stator pump that is easy to maintain and provides steady, consistent flow.

The ToughTek P30X-HT is perfect for contractors who are looking for versatility and features for medium to large stucco and EIFS projects. The P30X-HT has a large 60-gallon (227 liter) hopper and offers superior performance for a variety of stucco and EIFS materials.

For medium to large projects

• Easy to use, easy to move
• Variable pump output lets you adjust material flow
• Optional remote control operation
• Flow rate: 10 gpm (38 lpm)
• Output (underlayment): 200 bags per hour (based on 50-lb/22.6 kg bags)
• Pumping distance: 100 feet + (30 m)
• Pumping height: 60 feet (18 m)
• Reversible pump direction
• Hopper capacity: 63 Gal (239 L)
• Power requirements: 230V, 30A, 1-ph

Additional Specifications

• Flow Rate: 200 bags per hr
• Max Working Pressure: 300 PSI (21 bar)
• Material: Water Based Materials
• Pump Type: Mixing RS Pump (R7-1.5)
• Material Delivery: 200 bags per hr
• Maximum Flow Rate: 13 gpm (49.2 lpm)
• Maximum Particle Size: 1/4 in (6 mm)
• Maximum Hose Length: 200 ft (61 m)
• Power Input: 240V, 25A, 3PH
• Pump Outlet Size: 1.5 in (38 mm) Camlock
• Hopper Capacity: 18 cu ft (144 L)
• System Weight: 450 lb (204 kg)
• System Options: Static Mixer, Dust Collector
• Max Particle Size: 1/4 in (6 mm)
• Max Hose Length: 200 ft (61 m)
• Pump Size: R7-1.5
• Pump Outlet: 1.5 in (38 mm) Camlock

Features

• High-capacity 200 bags per hour material delivery
• RS Pump (R7-1.5) for reliable mixing performance
• Static mixer and dust collector included
• 38 gallon hopper capacity for continuous operation
• Water-based material compatibility
• 300 PSI maximum pressure capability

Applications

• High-volume mixing applications
• Water-based material pumping and mixing
• Commercial and industrial material delivery
• Self-leveling materials up to 200 bags per hour
• Powder material mixing and pumping
• High-volume finishing jobs

Compatible Equipment

• Water-based materials
• Camlock hose connections
• Material hoses up to 200 ft length
• 1.5 in (38 mm) Camlock connections
• ToughTek product line

Related Parts

• 25M062
• MTA750
• MTA724
• 25E528
• 25M062 - Bare w/Water Pump
• 274004 - Material Hose
• MTA750 - High Output Rotor/Stator Kit
• MTA751 - Rotor/Stator Kit
• 25E528 - Dust Collection Kit
• 25C823 - Static Mixer Kit

Kit Contents

• Water Pump
• Hose (1-3/8 in x 50 ft)
• Water Pump (bare unit available as 25M062)
• ToughTek MP40 unit with integrated mixer
• Material hose (2) 1-3/8 in x 50 ft (35 mm x 15 m) - 274004

This is a complete package that includes water pump and hose. A bare unit version is available as part number 25M062. Ready to spray complete package. Part 25M162 is the complete package w/water pump version. Part 25M162 is listed in the accessories section but no detailed specifications, description, or function is provided on this page. Additional product literature would be needed to provide complete specifications and marketing information.

Reference Manuals

• 3J0254EN-A (Page 3)
• 3J0257EN-A (Page 2)
• 3J0423EN-B (Page 4)
• 3J0423EN-C (Page 4)
