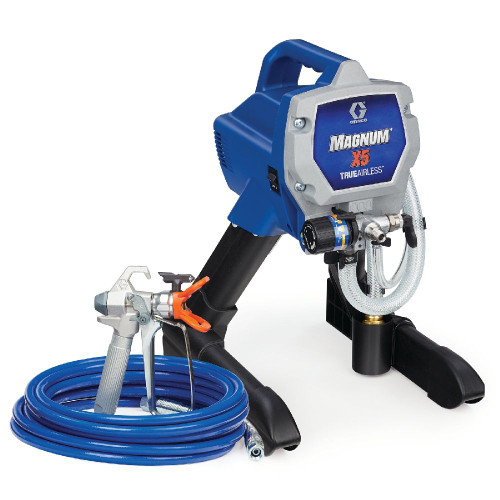

GRACO 262800 - Stainless Magnum x 5 Electric Trueairless Sprayer, 3000 PSI (207 Bar)

GRACO 262800 - Stainless Magnum x 5 Electric Trueairless Sprayer, 3000 PSI (207 Bar)

Item #: 262800

Price: with strikethrough $579.00

Retail Price:

Sale Price: Price $367.88

QTY:

Ships in 2-3 weeks

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description

GRACO 262800 Magnum X5 Electric TrueAirless Sprayer
DIY homeowners and handymen get cost-efficient, high-speed performance with the Magnum X5. This airless sprayer is ideal for painting interior projects and exterior projects, such as decks, siding, fences and small houses. Choose the X5 when you paint on a quarterly basis.

Hardened Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
Flexible Suction Tube - Spray directly from 1 or 5 gallon paint containers
TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
Power Flush - Connects to garden hose for fast cleanup
Durable Frame - Compact, lightweight and easy to carry
Adjustable Pressure - Easy control of paint flow
PushPrime - Fast and reliable start-up every time

Specifications

Amperage (A)	9.0
Compatible Tip Size (in)	0.009, 0.011, 0.013, 0.015
Engine Size (HP)	0.5
Fluid Outlet Size (in)	1/4
Fluid Outlet Thread Type	NPSM
Frame Configuration	Stand
Includes	SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer	35 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM)	0.27
Maximum Hose Length (ft)	75
Maximum Tip Size (in)	0.015
Maximum Tip Size 1 Gun (in)	0.015
Maximum Working Pressure (MPa)	20.7
Maximum Working Pressure (psi)	3000
Minimum Generator Power (W)	2500
Model	Magnum
Motor Type	Universal
Number of Guns	1
Overall Height (in)	17.9
Overall Length (in)	14.5
Overall Width (in)	12.4
Phase	1
Power Rating (HP)	0.5
Power Rating (W)	372.9
Power Rating (kW)	0.37
Power Source	Electric
Pressure Control Type	Adjustable
Pump Rod Type	Hardened Stainless Steel
Pump Sleeve Material	Stainless Steel
Pump Type	Piston
Recommended Annual Usage (gal)	125
Series	X5
Standards Met	ETL Certified, ETL File #100125967MIN-001
Type	Airless Sprayer
Voltage (V)	120
Weight (lb)	17
Wetted Material	Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE
Amperage (A)	9.0
Engine Size (HP)	0.5
Fluid Outlet Size (cm)	0.635
Fluid Outlet Size (mm)	6.35
Fluid Outlet Thread Type	NPSM
Frame Configuration	Stand
Includes	SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide
Inlet Paint Strainer	35 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min)	1.0
Maximum Hose Length (m)	23
Maximum Tip Size (cm)	0.0381
Maximum Tip Size (mm)	0.3810
Maximum Tip Size 1 Gun (cm)	0.0381
Maximum Tip Size 1 Gun (mm)	0.3810
Maximum Working Pressure (MPa)	20.7
Maximum Working Pressure (bar)	207
Maximum Working Pressure (kPa)	20700
Minimum Generator Power (W)	2500
Model	Magnum
Motor Type	Universal
Number of Guns	1
Overall Height (cm)	45.5
Overall Height (mm)	455
Overall Length (cm)	36.8
Overall Length (mm)	368
Overall Width (cm)	31.5
Overall Width (mm)	315
Phase	1
Power Rating (HP)	0.5
Power Rating (W)	372.9
Power Rating (kW)	0.37
Power Source	Electric
Pressure Control Type	Adjustable
Pump Rod Type	Hardened Stainless Steel
Pump Sleeve Material	Stainless Steel
Pump Type	Piston
Series	X5
Standards Met	ETL Certified, ETL File #100125967MIN-001
Type	Airless Sprayer
Voltage (V)	120
Weight (kg)	8
Wetted Material	Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE

Compatible Equipment

Up to 150 ft (46 m) airless hose
Extension cords
Garden hose for cleaning
Metal SG2 spray gun
515 spray tips
Up to 75 ft paint hose

Related Parts

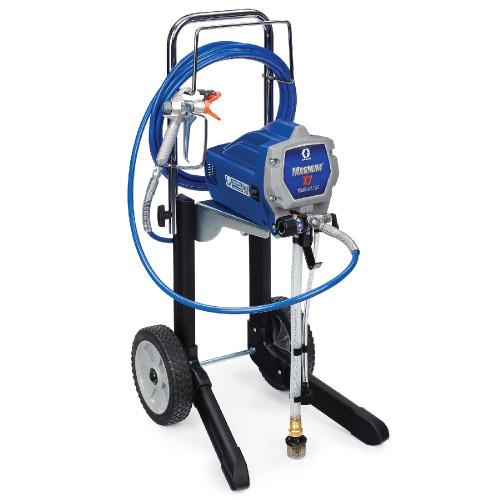

262805 - Magnum X7
257025 - Magnum Project Painter Plus
17G177 - Magnum ProX17
17G179 - Magnum ProX19, ProX17 (Stand-176177), ProX19 (Stand-176179)

Reference Manuals

344038 (Page 3) Product Guide Sprayers and Accessories
344066 (Page 10) Magnum & TrueCoat 360 Product Guide
344185 (Page 10) Graco Magnum/TrueCoat 360/TC Pro
3J0425EN (Page 10)
312667 (Page 1) X5, X7, ProX7 and ProX9 Airless Sprayer, Repair
