Item #: 26B504
Price: $1,166.59
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

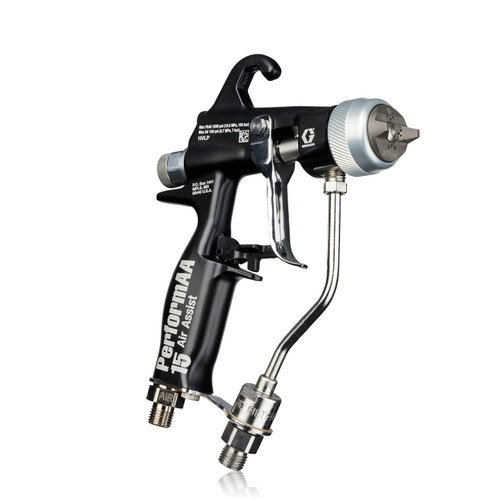

GRACO 26B504 - PerformAA 1500 Air Assist Gun w/ Gen Finish air cap, plastic seat & St Steel ball, 1500 PSI
PerformAA™ 15 Air Assist Gun Model - Medium-pressure gun includes carbide seat and ball, 100 mesh inline fluid filter, indexing air cap, and choice of AXM or AXF spray tip (unless otherwise noted). Gun with a plastic seat, stainless steel ball
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Acid Catalyzed, Lacquer, Latex, Plural Component Materials, Solventborne, Solventborne Paints, Topcoats, Varnish |
| Compatible Spray Tip | AXM, AXF |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Clicking |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1 |
| Gun Weight (oz) | 16 |
| Gun Weight with Tip and Guard (oz) | 17.1 |
| Gun Weight without Tip and Guard (oz) | 16.2 |
| Includes | Plastic Seat, Indexing Air Cap, Tip of Choice, Tool Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 10.5 |
| Maximum Fluid Pressure (psi) | 1500 |
| Maximum Fluid Temperature (°F) | 110 |
| Model | PerformAA 15 |
| Overall Height (in) | 8.2 |
| Overall Length (in) | 6 |
| Product Type | Spray Gun |
| Sound Power Level (dB(A)) | 72.3 |
| Sound Pressure Level (dB(A)) | 62.6 |
| Spray Pattern | Flat |
| Spray Type | Air-Assisted |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the PerformAA 15 Air Assist Gun Models family. Does not include fluid swivel connector (unlike some other models in the series). This is a special variant with plastic seat and stainless steel ball instead of the standard carbide seat and ball. Does not include fluid swivel connector. This is one of six models (26B500, 26B501, 26B502, 26B503, 26B504, and 26B505) of the Perform AA 15 Air Assist Gun series covered by this parts diagram. No detailed specifications are provided on this page - only the exploded view diagram showing the component parts.
Reference Manuals
GRACO 26B504 - PerformAA 1500 Air Assist Gun w/ Gen Finish air cap, plastic seat & St Steel ball, 1500 PSI
PerformAA™ 15 Air Assist Gun Model - Medium-pressure gun includes carbide seat and ball, 100 mesh inline fluid filter, indexing air cap, and choice of AXM or AXF spray tip (unless otherwise noted). Gun with a plastic seat, stainless steel ball
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Acid Catalyzed, Lacquer, Latex, Plural Component Materials, Solventborne, Solventborne Paints, Topcoats, Varnish |
| Compatible Spray Tip | AXM, AXF |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Clicking |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Weight (lb) | 1 |
| Gun Weight (oz) | 16 |
| Gun Weight with Tip and Guard (oz) | 17.1 |
| Gun Weight without Tip and Guard (oz) | 16.2 |
| Includes | Plastic Seat, Indexing Air Cap, Tip of Choice, Tool Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 10.5 |
| Maximum Fluid Pressure (psi) | 1500 |
| Maximum Fluid Temperature (°F) | 110 |
| Model | PerformAA 15 |
| Overall Height (in) | 8.2 |
| Overall Length (in) | 6 |
| Product Type | Spray Gun |
| Sound Power Level (dB(A)) | 72.3 |
| Sound Pressure Level (dB(A)) | 62.6 |
| Spray Pattern | Flat |
| Spray Type | Air-Assisted |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the PerformAA 15 Air Assist Gun Models family. Does not include fluid swivel connector (unlike some other models in the series). This is a special variant with plastic seat and stainless steel ball instead of the standard carbide seat and ball. Does not include fluid swivel connector. This is one of six models (26B500, 26B501, 26B502, 26B503, 26B504, and 26B505) of the Perform AA 15 Air Assist Gun series covered by this parts diagram. No detailed specifications are provided on this page - only the exploded view diagram showing the component parts.
Reference Manuals
