Item #: V25JT200BB
Price: $4,799.32
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

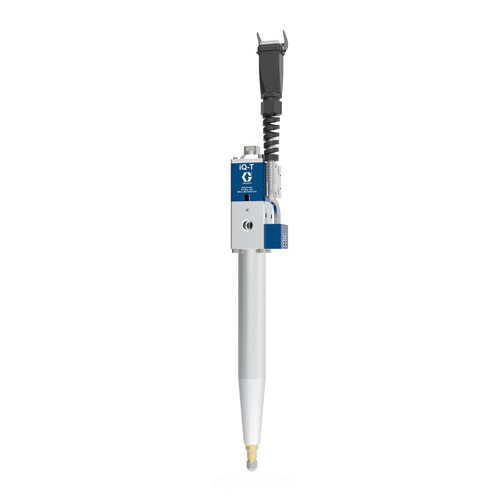

GRACO V25JT200BB - iQ Dispense Valve, Tip-Seal, Heated, 0.098in (2.5mm) Tip, 7.87in (200mm) Nozzle, Direct Mount Solenoid
The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
| Air Inlet Size (in) | 5/16 |
| Air Inlet Thread Type | Push-to-Connect |
| Ambient/Warm Melt/Hot Melt | Warm Melt |
| Applicator Type | Tip-Seal |
| Component Type | Single Component |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Operating Temperature (°F) | 158 |
| Mount Location | Direct Mount Solenoid |
| Nozzle Size (in) | 0.098 |
| Outlet Block Length (in) | 7.9 |
| Phase | 1 |
| RTD Type | 100 OHM - Platinum |
| Solenoid Valve Voltage Rating (V dc) | 24 |
| Voltage (V ac) | 240 |
| Weight (lb) | 3.5 |
| Wetted Material | Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, CA 360 Brass, Coated Tool Steel, 440C Stainless Steel |
GRACO V25JT200BB - iQ Dispense Valve, Tip-Seal, Heated, 0.098in (2.5mm) Tip, 7.87in (200mm) Nozzle, Direct Mount Solenoid
The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
| Air Inlet Size (in) | 5/16 |
| Air Inlet Thread Type | Push-to-Connect |
| Ambient/Warm Melt/Hot Melt | Warm Melt |
| Applicator Type | Tip-Seal |
| Component Type | Single Component |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Operating Temperature (°F) | 158 |
| Mount Location | Direct Mount Solenoid |
| Nozzle Size (in) | 0.098 |
| Outlet Block Length (in) | 7.9 |
| Phase | 1 |
| RTD Type | 100 OHM - Platinum |
| Solenoid Valve Voltage Rating (V dc) | 24 |
| Voltage (V ac) | 240 |
| Weight (lb) | 3.5 |
| Wetted Material | Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, CA 360 Brass, Coated Tool Steel, 440C Stainless Steel |
