DP7800 OMP – 1/2 in. x 50 ft. Compact Dual Pedestal Hose Reel

Reelcraft DP7800-OMP - 1/2" x 50 ft. 3000 psi, Compact Dual Pedestal Oil Hose Reel

Item #: DP7800-OMP

MSRP: Price: $635.28

Price: with strikethrough $715.00

Retail Price:

Sale Price: Price $589.90

(You save $45.38 )

QTY:

In Stock – Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description

Reelcraft DP7800-OMP - 1/2" x 50 ft. Compact Dual Pedestal Oil Hose Reel

Reelcraft’s compact dual pedestal Series DP7000 hose reel features an innovative, non-welded, interlocking base. Independent testing to military standards has proven the reel stands up to heavy vibration, which makes them especially strong and ideal for truck-mounted applications. The superbly engineered dual pedestal base and guide arm are structurally reinforced. An all-steel construction and a baked-on powder coat finish combine to produce a rugged corrosion-resistant product suitable for a wide variety of heavy duty applications.

Reinforced steel – Steel guide arm and dual pedestal base are stamped with ribs and gussets to ensure maximum strength and lightest possible weight. The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts.
Superior latch spring design – The torsions style latch spring life far exceeds that of conventional coil springs.
Long life drive spring – Declutching arbor eliminates reverse spring winding, and torsions latch spring is virtually unbreakable. High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
Made in USA

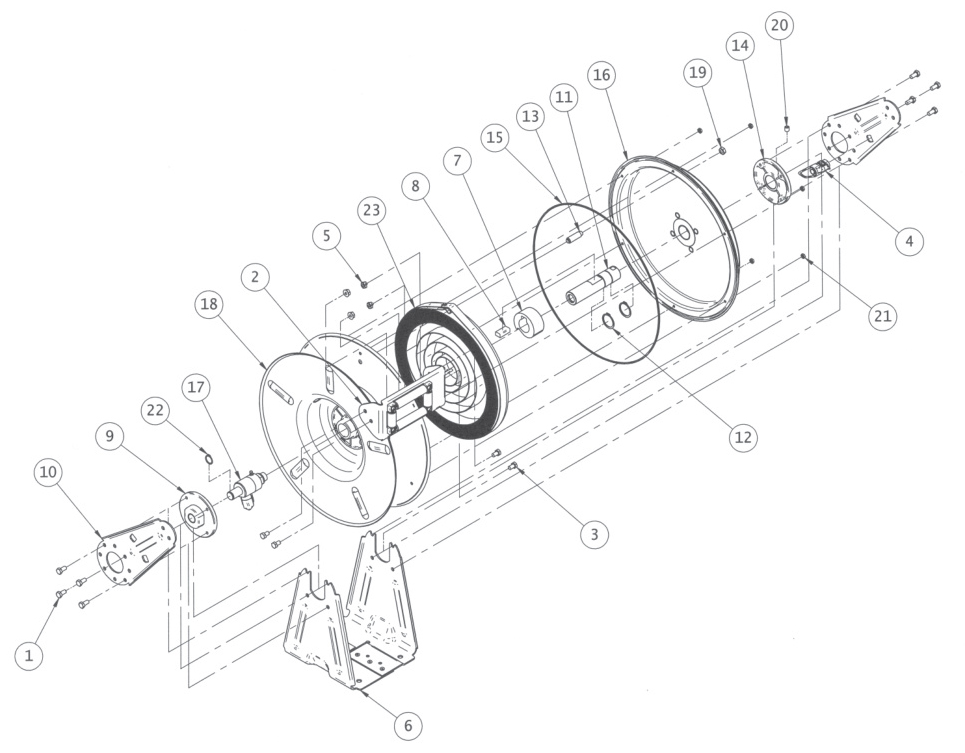

DP7800-OMP Parts List (23 Items) ▼

Item #	# Req.	Part Number	Description
1	8	S2-52	Hex Cap Screw 5/16-18 x 5/8"
2	1	S602142	Guide Roller Bracket Assembly
3	4	S2-51	Hex Cap Screw 5/16-18 x 1/2"
4	1	S602144	Latch Pawl Assembly
5	4	300107	Lock Nut 5/16-18
6	1	602140	Base Assembly
7	1	261274	Spring Arbor
8	1	261275	Arbor Key
9	1	602158	Hub C and Bushing Assembly
10	2	S262110	Guide Arm
11	1	262119	Main Shaft
12	2	300007	Snap Ring
13	1	S260031	Spring Case Stud
14	1	S262115	Hub A
15	1	S262138	Spring Case O-Ring Seal
16	1	S602149	Spring Case and Ratchet Assembly
17	1	S602159	Swivel Assembly
18	1	602146	Spool Assembly
19	1	S76-106	3/8-24 Jam Nut
20	1	300121	Set Screw 3/8-16 x 3/8"
21	6	S300011	10-32 Hex Locknut
22	1	S300122	Snap Ring (External)
23	1	262146-70	Drive Spring Assembly

Weight	45 lbs
Series	DP7000
Hose I.D.	1/2"
Hose O.D.	0.82"
Hose Length	50'
Pressure	3000 psi
Inlet	1/2" NPT(F)
Reel Outlet	1/2" NPT(F)
Hose Included	No
Max Temperature	210 °F
UPC	699567006633
Carton Dimensions	18.5" x 10" x 19.5"
Internal Fluid Path	Steel
Swivel Assembly	Steel
Swivel Seal	Buna

Weight	45 lbs
Series	DP7000
Hose I.D.	1/2"
Hose O.D.	0.82"
Hose Length	50'
Pressure	3000 psi
Inlet	1/2" NPT(F)
Reel Outlet	1/2" NPT(F)
Hose Included	No
Max Temperature	210 °F
UPC	699567006633
Carton Dimensions	18.5" x 10" x 19.5"
Internal Fluid Path	Steel
Swivel Assembly	Steel
Swivel Seal	Buna
