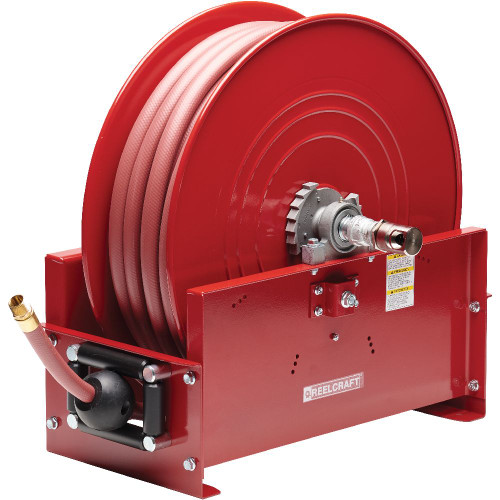

Reelcraft E9399 OLPBW - 3/4" x 100 ft. Ultimate Duty Hose Reel
Reelcraft’s Series E9000 mobile base hose reels offer the greatest amount of stability. Ideal for service trucks, permanent service, or plant work areas. A durable baked-on powder coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications. Contact Reelcraft for top wind and side wind hose guide conversion kits.
NOTE: Reelcraft Series 9000 reels only ship LTL. Small parcel shipments are not available for this model.

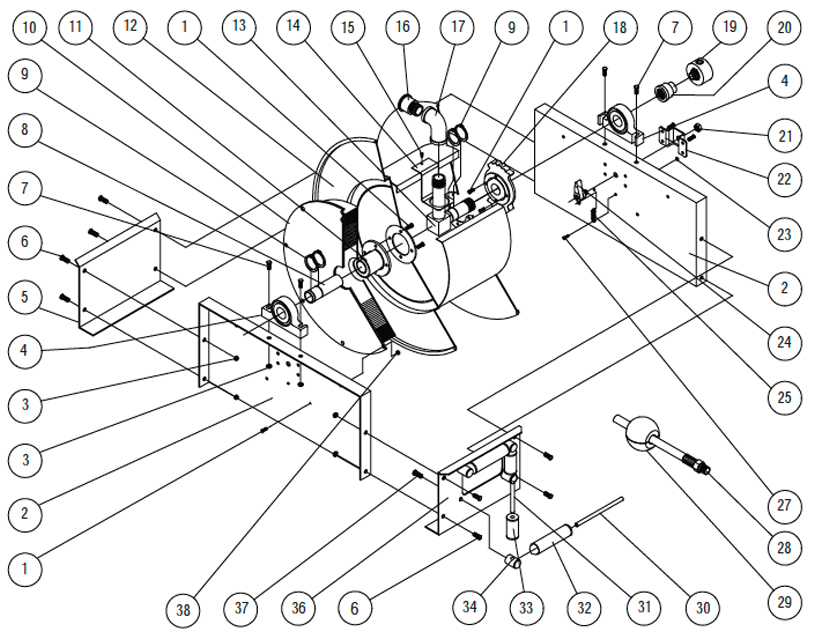

| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| 1 | 1 | S262104 | End Frame Kit |
| 2 | 1 | S600416 | Bearing & Shaft Kit |
| 3 | 1 | S602722 | Drive Spring Kit |
| 4 | 1 | S396188 | Arbor Kit |
| 5 | 1 | S601081 | Spool Kit |
| 6 | 1 | S260889 | Ratchet Kit |
| 7 | 1 | S600420 | Fluid Path Kit |
| 8 | 1 | S600454 | Latch Kit |
| 9 | 1 | S270009 | Side Frame Kit |
| 10 | 1 | S602130 | End Frame Kit (w/ Roller Guide) |
| 11 | 1 | S600344 | Swivel Assembly |
| 12 | 1 | S601026-100 | Hose Assembly |
| 13 | 1 | 3-HR1005 | Bumper Stop Assembly |
| 8a | 1 | S260067-1 | Latch Spring Kit |
| Weight | 153 lbs |
| Series | 9000 |
| Hose I.D. | 3/4" |
| Hose O.D. | 1.075" |
| Hose Length | 100' |
| Pressure | 250 psi |
| Hose End | 3/4" NPT(M) |
| Inlet | 3/4" NPT(F) |
| Reel Outlet | 3/4" NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567028574 |
| Carton Dimensions | 28" x 13.5" x 29" |
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
| Weight | 153 lbs |
| Series | 9000 |
| Hose I.D. | 3/4" |
| Hose O.D. | 1.075" |
| Hose Length | 100' |
| Pressure | 250 psi |
| Hose End | 3/4" NPT(M) |
| Inlet | 3/4" NPT(F) |
| Reel Outlet | 3/4" NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567028574 |
| Carton Dimensions | 28" x 13.5" x 29" |
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
