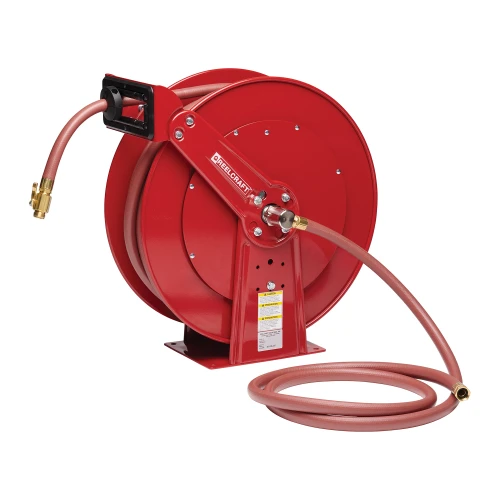

Reelcraft GCD85100 OLP - 5/8" x 100 ft. 250 psi, Garden Series Spring Retractable Hose Reel

Reelcraft GCD85100 OLP - 5/8" x 100 ft. 250 psi, Garden Series Spring Retractable Hose Reel

Item #: GCD85100-OLP

MSRP: Price: $1,114.02

Price: with strikethrough $1,245.00

Retail Price:

Sale Price: Price $1,034.45

(You save $79.57 )

QTY:

In Stock – Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description

Reelcraft GCD85100 OLP - 5/8" x 100 ft. Heavy Duty Garden Hose Reel

Reelcraft garden hose reels are designed to be mounted centrally and used for watering and washdown. The Series 80000 reel offers longer lengths of larger I.D. hose, is spring-driven, and comes equipped with garden hose end fittings (designated by GH). This model includes an outlet hose with a brass on/off valve, bumper, and inlet hose, providing a reel solution out of the box.

Long spring life – Spring is made from high-quality spring steel and conditioned to remove imperfections.
Structural strength – Reel components are made from industrial-grade steel and ribs are added to give added stability.
Ease of use – The guide arm is easily adjustable to numerous positions. The hose bumper maintains the desired working hose length.
Corrosion-resistant – Reel parts are individually powder-coated for high-quality, uniform paint adhesion. The result is a brilliant abrasion/corrosion-resistant finish that keeps these reels looking new through years of use.
Made in the USA

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

GCD85100-OLP Parts List (23 Items) ▼

Item #	# Req.	Part Number	Description
1	1	S602026	Swivel Assembly
---	1	600654	Hardware Kit
3	2	261299	Guide Arm
4	1	S600645-2	Spring & Case Assembly
7	1	S600705	Roller Bracket Assembly
10	1	601046-100	Hose Assembly
11	1	600838	Bumper Stop Assembly
14	1	S600651	Flange w/Bearing & Nut-sert Assembly
15	1	261590-1	Ratchet, Flow Casting
16	1	261393	Spool Spacer
19	1	600704	Base & Upright Assembly
20	1	S393-2	Shoulder Screw
20	1	261351	Latch Spring Stud
21	1	260067-1	Latch Spring
22	1	S600018	Latch Pawl Assembly
23	1	S600644	Bearing & Flange Assembly
24	1	261307	Sheave, Hose Opening
25	1	S183-54	Pipe Plug
26	1	261308	Sheave, Springcase
27	8	S2-411	Screw, 1/4-20 x 2 1/2"
28	3	S2-511	Screw, 5/16-18 x 2 1/2"
29	1	600830-10	Inlet Hose
30	1	261447	Garden Valve

Weight	95 lbs
Series	80000
Hose I.D.	5/8"
Hose O.D.	1.000"
Hose Length	100'
Pressure	250 psi
Hose End	3/4" GH(M)
Inlet	3/4" GH(F)
Reel Outlet	3/4" NPT(F)
Hose Included	Yes
Max Temperature	150 °F
UPC	699567026006
Carton Dimensions	27.5" x 13.625" x 27.625"
Internal Fluid Path	Aluminum
Swivel Assembly	Steel
Swivel Seal	Aflas

Weight	95 lbs
Series	80000
Hose I.D.	5/8"
Hose O.D.	1.000"
Hose Length	100'
Pressure	250 psi
Hose End	3/4" GH(M)
Inlet	3/4" GH(F)
Reel Outlet	3/4" NPT(F)
Hose Included	Yes
Max Temperature	150 °F
UPC	699567026006
Carton Dimensions	27.5" x 13.625" x 27.625"
Internal Fluid Path	Aluminum
Swivel Assembly	Steel
Swivel Seal	Aflas
