Reelcraft PW81000-OHP - 3/8" x 100 ft. 5000psi Pressure Wash Reel -No Hose

Reelcraft PW81000-OHP - 3/8" x 100 ft. 5000psi Pressure Wash Reel -No Hose

PW81000 OHP – 3/8 in. x 100 ft. Heavy Duty Pressure Wash Hose Reel

Reelcraft PW81000-OHP - 3/8" x 100 ft. 5000psi Pressure Wash Reel -No Hose

Item #: PW81000-OHP

MSRP: Price: $815.61

Price: with strikethrough $919.00

Retail Price:

Sale Price: Price $757.35

(You save $58.26 )

QTY:

In Stock – Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description

Reelcraft PW81000-OHP - 3/8" x 100 ft. 5000psi Pressure Wash Reel -No Hose

Compact design and quality steel construction are incorporated into Reelcraft’s newest line of pressure wash reels, rated up to 5000 PSI. Series PW reels are able to carry up to 100 feet of tangle-free hose and are complete with a high-pressure water swivel for maximum product delivery. The high-pressure water swivel is designed to handle a broad range of pressures, temperatures, and chemicals; perfect for agricultural/marine, equipment cleaning, and pressure washing applications.

High-pressure water swivel – is designed to handle a broad range of pressures, temperatures, and chemicals; perfect for agriculture/marine, equipment cleaning, and pressure washing applications.
Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

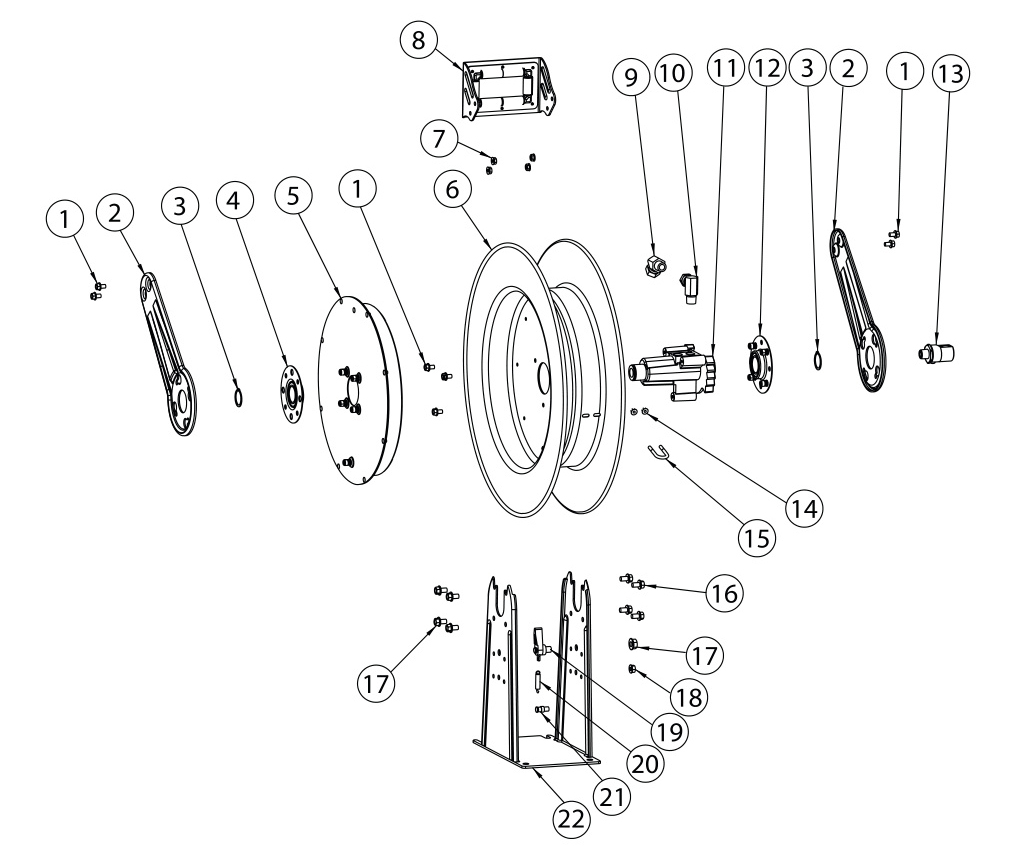

PW81000-OHP Parts List (21 Items) ▼

Item #	# Req.	Part Number	Description
---	1	600654	Hardware Kit
2	2	261299	Guide Arm
4	1	S600644	Bearing & Flange Assembly
5	1	S600645-2	Spring & Case Assembly
6	1	600649	Sheave Assembly
8	1	S600642	Roller Bracket Assembly
9	1	S257-4	1/2 x 1/2 Swivel Union
10	1	S257-63	1/2 x 3/8 Swivel Union 45°
11	1	600667-3	Ratchet, Flow Casting
12	1	S600651	Flange w/Bearing & Nut-Sert Assembly
13	1	S602033	Swivel Assembly
14	2	261650-1	1/4-20 Lock Nut
15	1	3-117440	U-bolt
17	1	S280-8	1/2-20 Hex Nut
18	2	S281-6	3/8-16 Hex Nut
18	1	S82-15	10-32 Nyloc Nut
19	1	S600675	Latch Pawl Assembly
20	1	S260067	Latch Spring
21	1	S393-2	Shoulder Screw
21	1	261351	Latch Pawl Stud
22	1	600641	Base & Upright Assembly

Weight	86 lbs
Series	80000
Hose I.D.	3/8"
Hose O.D.	0.73"
Hose Length	100'
Pressure	5000 psi
Inlet	1/2" NPT(F)
Reel Outlet	3/8" NPT(F)
Hose Included	No
Max Temperature	212 °F
UPC	699567002741
Carton Dimensions	28" x 10" x 27"
Internal Fluid Path	Steel
Swivel Assembly	Steel
Swivel Seal	Aflas

Weight	86 lbs
Series	80000
Hose I.D.	3/8"
Hose O.D.	0.73"
Hose Length	100'
Pressure	5000 psi
Inlet	1/2" NPT(F)
Reel Outlet	3/8" NPT(F)
Hose Included	No
Max Temperature	212 °F
UPC	699567002741
Carton Dimensions	28" x 10" x 27"
Internal Fluid Path	Steel
Swivel Assembly	Steel
Swivel Seal	Aflas
