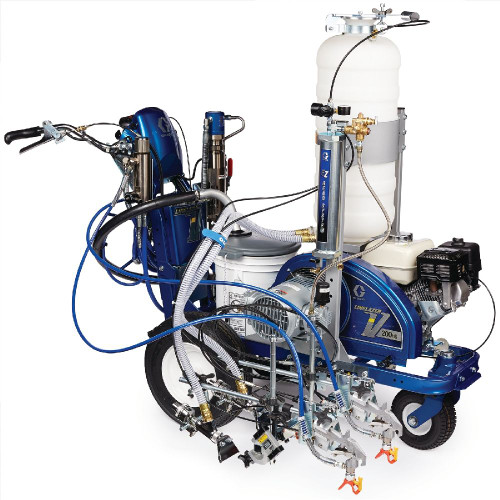

GRACO 17H464 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 2 Auto Guns

The LineLazer V 200HS HP Automatic Series gas hydraulic airless line striper is ideal for high-production jobs that require reflective beads and precise lines. Features push button control for automatic, semi-automatic guns that reduces operator fatigue and takes the guesswork out of line length. Includes valuable job information with J-Log System and USB download capability for proof of job and capturing job data.

With high production features, the LineLazer V 200HS HP Automatic Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

• Automatic Paint Gun System

  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue — push button line production
  • Quality solenoid driven system
• Auto-Layout II

  • Simplify Parking Lot Layout
  • SmartControl measures while you walk and puts down pre-marks
  • No need for measuring tape, string lines or aerosol cans
  • Cuts your layout time in half
• LiveLook Display with SmartControl

  • Striping Information At-A-Glance
  • Track, measure and control every aspect of your job
  • Accessible proof-of-job data from the J-Log System with USB Download
  • Consistent spraying pressure for perfect lines
• J-Log System with USB Download

  • Valuable Job Information
  • Proof of job = More striping opportunities.
  • USB download capability allows you to capture and save all job data
• Honda GX Engine

  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low
• EasyMark Gun Adjustment System

  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector
• EZ Align Wheel System

  • Perfect Striper Tracking
  • Simple front wheel alignment, no special tools needed
• DualComfort Handlebar System

  • Easy Handlebar Adjustment
• Endurance Chromex Pump

  • Reliable, Long-Life Pump
  • Industry-best pump performance — field-proven design
  • Handle the most demanding materials with long-life rod treatment
  • 4X harder than ordinary chrome
• Additional Features
  • High-Efficiency Hydraulic Motor
  • High-Capacity Cooling System
  • QuikSelect Gun Selector
  • Easy Out Pump Filter
  • LazerGuide 1700 Start/Stop Laser

Additional Specifications

• Flow Rate: 0.047 gallons per minute maximum tip size
• Material: Hardened Stainless Steel cylinder
• Series: HP Automatic/Reflective Series
• Engine: Honda GX Engine 200cc
• Pump: Endurance Chromex Pump
• Weight: 306 lb Standard Unit, 322 lb HP Automatic Unit, 417 lb HP Reflective Unit
• Hose: 3/8 in x 25 ft, 3500 PSI BluMax 4 Airless
• Tracking System: SmartControl
• Easy Out Filter: 50 Mesh
• Type: QuikChange System
• Intake: QuikAccess
• Rod: Chromex
• Model Type: LineLazer V 200HS
• Laser Equipped: yes

Specifications

Features

• Push button control for automatic, semi-automatic guns
• Reduces operator fatigue
• Takes guesswork out of line length
• Less layout time with Auto-Layout II
• Easy to use - cuts layout time in half
• Exclusive LazerGuide 1700 Start/Stop Laser

Applications

• High-production striping jobs
• Jobs requiring reflective beads
• Large parking lot jobs
• Airports
• City jobs requiring precise lines
• Parking lot striping

Compatible Equipment

• LineLazer V 200HS series
• Flux Plus 2-Automatic paint systems
• BluMax 4 Airless hose systems
• LaserGuide 1700 SemiSharp laser systems
• LineLazer V 200HS

Related Parts

• 17H463
• 17H465
• 17H231
• 17G260
• 17H270
• 17H467
• 17H468
• 17H469
• 17H471
• 17H472

Kit Contents

• All LineLazer V 200HS Standard Series features included
• DualComfort Handlebar System
• EZ Align Wheel System
• EasyMark Gun Adjustment System
• QuickSelect Gun Selector
• Honda GX Engine
• Endurance Chromex Pump
• Easy Out Pump Filter

This is the 2 automatic guns configuration of the LineLazer V 200HS HP Automatic series. Also available as 17H463 which appears to be a related model in the same series. Part of the LineLazer V 200HS series with HP Automatic gun configuration. Uses Flux Plus 2-Automatic paint system with 1 tank capacity. All auto guns can be actuated manually. This is a complete line striper unit with 2 automatic guns and laser capability.

Reference Manuals

• 344385 (Page 10) LineLazerBrochure (ANZ ONLY)
• 3A3390 (Page 3) LineLazer V 200HS/200DC Airless Line Stripers, Parts
• 3A3426 (Page 3) LineLazer™ V 200HS & 200DC Airless Line Stripers Standard Series and High Production (HP) Series
