GRACO 17Y231 - LineLazer V 200DC Standard Series Airless Line Striper, 2 Manual Guns

The LineLazer V 200DC Standard Series provides a cost-effective walk-behind dual color striping solution for smaller line striping applications. Features dual-color capability with no need for separate yellow and white machines, proven dual GRACO hydraulic motors for uninterrupted performance, and real-time job performance data tracking.

The LineLazer V 200DC Standard Series provides a cost-effective dual color striping solution for smaller applications. Maximize productivity with systems that provide quick and easy adjustments, including the EasyMark Gun Adjustment System, EZ Align Wheel Adjustment System and more.

The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing larger re-striping jobs and considering jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.

• Dual Color Capable
  • Two Units in One
  • No need for separate “yellow” and “white” machines
• Large, Dual 10-Gallon Hopper

  • Less refilling
• Dual High-Efficiency Hydraulic Motors

  • Uninterrupted Performance
  • No-Stall design
• LiveLook Display with SmartControl

  • Striping Information At-A-Glance
  • Track, measure and control every aspect of your job
  • Accessible proof-of-job data from the J-Log System with USB Download
  • Consistent spraying pressure for perfect lines
• Honda GX Engine

  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low
• EasyMark Gun Adjustment System

  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector
• EZ Align Wheel System

  • Perfect Striper Tracking
  • Simple front wheel alignment, no special tools needed

• DualComfort Handle Bar System
  • Easy Handlebar Adjustment
• Endurance Chromex Pump

  • Reliable, Long-Life Pump
  • Industry-best pump performance — field-proven design
  • Handle the most demanding materials with long-life rod treatment
  • 4X harder than ordinary chrome
• Additional Features
  • High-Capacity Cooling System
  • QuikSelect Gun Selector
  • Easy Out Pump Filter

Additional Specifications

• Flow Rate: 2.15 (8.1) gpm (lpm)
• Max Working Pressure: 3300 (227) PSI (bar)
• Hopper Capacity: Dual 10-Gallon (38L)
• Bead Tank: 120 lbs capacity
• Maximum Tip Size: 0.047
• Weight: 361 (164) HP Standard Units, 397 (180) HP Automatic Unit, 432 (223) HP Reflective Units With Pressurized Bead System - 1 Tank
• Applications: Flat and Pavement
• Honda Gx Engine: 200 (6.5) cc (hp)
• Hose: 2X, 3/8 in x 12 ft BluMax 4 Airless
• Laser: LaserGuide 1700 SemiShip Laser
• Switch Tip: LineLazer RAC 5
• Easy Out Filter: 50 Mesh
• Type: QuikChange System
• Intake: QuikAccess
• Rod: Chromex
• Cylinder: Hardened Stainless Steel
• Packings: V-Max Blue
• Tracking System: SmartControl
• Fuel Capacity: 0.95 (3.6) per liter
• Series: 200DC

Specifications

Features

• Dual-color capability - no need for separate yellow and white machines
• Easy gun adjustments with EasyMark Gun Adjustment System
• Easy handlebar adjustment with DualComfort Handlebar System
• Large dual 10-gallon (38L) hoppers for less refilling
• Proven dual GRACO hydraulic motors for uninterrupted performance
• Real-time job performance data with LiveLook Display and SmartControl

Applications

• Smaller line striping jobs
• Dual color striping applications
• Walk-behind line striping operations
• Flat surface line marking
• Pavement marking
• Road striping

Compatible Equipment

• LineDriver user-friendly ride-on system
• LineLazer V 200DC series
• Honda GX 200 (6.5) cc engine systems

Related Parts

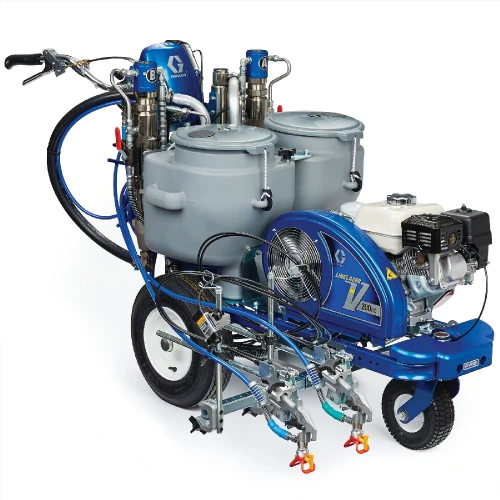

• 17Y269 - LineLazer V 200DC HP Automatic Series Striper

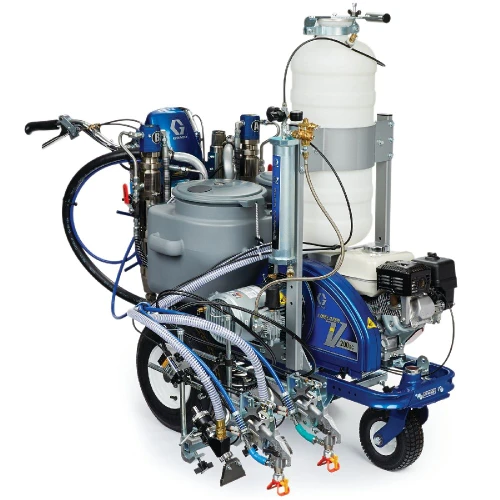

• 17Y270 - LineLazer V 200DC HP Reflective Series Striper
• 17H461 - LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns
• 17H463 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 1 Auto Gun, 1 Manual Gun, 3300 PSI
• 17H464 - LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 2 Auto Guns
• 17H465 - LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns, Hardened Stainless Steel, 3300 PSI
• 17G269
• 25P346
• 17Y232

Standard series model with 2-gun capability and QuickSelect Gun Selector. Can be upgraded with LineDriver for unmatched performance. Part of the LineLazer V 200DC Standard Series family. Designed for flat and pavement applications with manual gun control. Part of the LineLazer V 200DC series with Standard 2 Manual Guns configuration. All auto guns can be actuated manually according to the footnote.

Reference Manuals

• 344385 (Page 12) LineLazerBrochure (ANZ ONLY)
• 3A3390 (Page 3) LineLazer V 200HS/200DC Airless Line Stripers, Parts
• 3A3426 (Page 3) LineLazer™ V 200HS & 200DC Airless Line Stripers Standard Series and High Production (HP) Series
