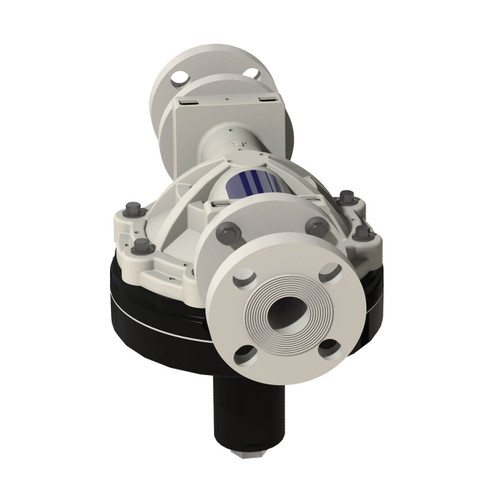

GRACO 2000469 - 1.5" i-Series Polypropylene Pulsation Dampener w/ PP Seats & SP Diaphragm, 1-1/2" RF ANSI/DIN flg
PP seat with SP diaphragm and PTFE seat seal for Model f150P
Reducing pulsation and vibration in your system will reduce stress on downstream equipment and increase system efficiency. Pulsation dampeners can improve the performance and reliability of your fluid transfer process
Additional Specifications
- Thread: 1-1/2 in. RF ANSI/DIN flg
- Material: PP (polypropylene) seat, SP diaphragm, PTFE seat seal
- Port Size: 1-1/2 in.
- Fluid Section Material: PP
- Kit Part Number: 2003020
- Dampener Size: i150 (1-1/2 in.)
- Wetted Material: AL
- Diaphragm Material: SP
- Seat Material: PP
Specifications
| Connection Type | Flange |
| Diaphragm Material | Santoprene |
| Fluid Section Material | Polypropylene |
| Hazardous Location Approval | None |
| Inlet Size (in) | 1.5 |
| Maximum Flow Rate (GPM) | 90 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Maximum Fluid Pressure (MPa) | 0.69 |
| Maximum Fluid Pressure (psi) | 100 |
| Minimum Fluid Operating Temperature (°C) | 0 |
| Minimum Fluid Operating Temperature (°F) | 32 |
| Model | i-Series |
| Outlet Size (in) | 1.5 |
| Seat Material | Polypropylene |
| Series | 1.5" |
| Type | Pulsation Dampener |
| Wetted Material | Polypropylene |
Compatible Equipment
- Model f150P - 1-1/2 in. Port
- i150 (1-1/2 in.) dampeners
Related Parts
- 26D886 - 1.5" i-Series Polypropylene Pulsation Dampener w/ PP Seats & PS Diaphragm, 1-1/2" RF ANSI/DIN flg
- 2000470 - 1.5" i-Series Polypropylene Pulsation Dampener w/ PP Seats & BN Diaphragm
- 2000464 - 1.5" i-Series Aluminum Pulsation Dampener w/ SS Seats & SP Diaphragm
- 2000466 - 1.5" i-Series Aluminum Pulsation Dampener w/ SS Seats & SP Diaphragm
- 2000465 - 1.5" i-Series Aluminum Pulsation Dampener w/ SS Seats & BN Diaphragm
- 2000468 - 1.5" i-Series Aluminum Pulsation Dampener w/ SS Seats & BN Diaphragm
- 2000882 - 1.5" i-Series Aluminum Pulsation Dampener w/ SS Seats & PO Diaphragm
- 2000883 - 1.5" i-Series Aluminum Pulsation Dampener w/ SS Seats & PO Diaphragm
Kit Contents
- 1 or 2 diaphragms
- 1 diaphragm bolt seal (for non-overmolded diaphragms)
- 2 seats
- 2 or 4 seat seals
- Spool seals
- 1 spool housing seal
- 1 package, adhesive
- 1 set screw (overmolded diaphragm only)
Part of the f150 (DTD) series with 1-1/2 in. port, specifically for polypropylene fluid section applications with P1 connections This is a repair kit, not an individual component. Kit part number is 2003020. See Configuration Matrix on page 5 for material definitions.
Reference Manuals
- 3A7672 (Page 3) Pulsation Dampener
