Item #: 2000476
Price: $2,520.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

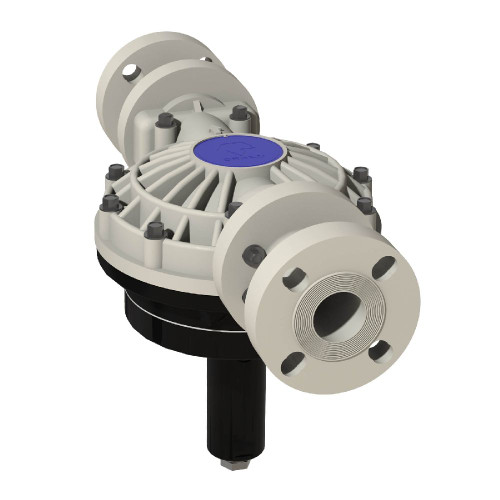

GRACO 2000476 - 2" i-Series Polypropylene Pulsation Dampener w/ PP Seats & SP Diaphragm
2000476 is a dampener part number that pairs with kit part number 2003023
Reducing pulsation and vibration in your system will reduce stress on downstream equipment and increase system efficiency. Pulsation dampeners can improve the performance and reliability of your fluid transfer process
Additional Specifications
Specifications
| Connection Type | Flange |
| Diaphragm Material | Santoprene |
| Fluid Section Material | Polypropylene |
| Hazardous Location Approval | None |
| Inlet Size (in) | 2 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Maximum Fluid Pressure (MPa) | 0.69 |
| Maximum Fluid Pressure (psi) | 100 |
| Minimum Fluid Operating Temperature (°C) | 0 |
| Minimum Fluid Operating Temperature (°F) | 32 |
| Model | i-Series |
| Outlet Size (in) | 2 |
| Seat Material | Polypropylene |
| Series | 2" |
| Type | Pulsation Dampener |
| Wetted Material | Polypropylene |
Compatible Equipment
Related Parts
Part of the i200 (DTE) 2 in. Port series, specifically for polypropylene fluid section material applications with connection P1 (2 in. RF ANSI/DIN flg) This part number appears in the Diaphragm Repair Kits section for 2-inch dampeners. It corresponds to kit 2003023 which includes 1 or 2 diaphragms, 1 diaphragm bolt seal, 2 seats, 2 or 4 seat seals, spool seals, 1 spool housing seal, 1 package adhesive, and 1 set screw for overmolded diaphragms.
Reference Manuals
GRACO 2000476 - 2" i-Series Polypropylene Pulsation Dampener w/ PP Seats & SP Diaphragm
2000476 is a dampener part number that pairs with kit part number 2003023
Reducing pulsation and vibration in your system will reduce stress on downstream equipment and increase system efficiency. Pulsation dampeners can improve the performance and reliability of your fluid transfer process
Additional Specifications
Specifications
| Connection Type | Flange |
| Diaphragm Material | Santoprene |
| Fluid Section Material | Polypropylene |
| Hazardous Location Approval | None |
| Inlet Size (in) | 2 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Maximum Fluid Pressure (MPa) | 0.69 |
| Maximum Fluid Pressure (psi) | 100 |
| Minimum Fluid Operating Temperature (°C) | 0 |
| Minimum Fluid Operating Temperature (°F) | 32 |
| Model | i-Series |
| Outlet Size (in) | 2 |
| Seat Material | Polypropylene |
| Series | 2" |
| Type | Pulsation Dampener |
| Wetted Material | Polypropylene |
Compatible Equipment
Related Parts
Part of the i200 (DTE) 2 in. Port series, specifically for polypropylene fluid section material applications with connection P1 (2 in. RF ANSI/DIN flg) This part number appears in the Diaphragm Repair Kits section for 2-inch dampeners. It corresponds to kit 2003023 which includes 1 or 2 diaphragms, 1 diaphragm bolt seal, 2 seats, 2 or 4 seat seals, spool seals, 1 spool housing seal, 1 package adhesive, and 1 set screw for overmolded diaphragms.
Reference Manuals
