Item #: 2000470
Price: $2,270.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

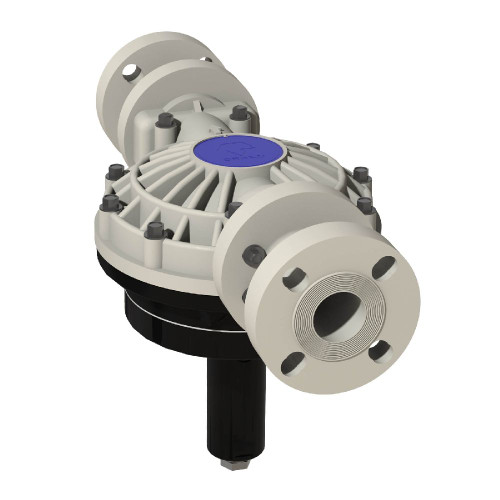

GRACO 2000470 - 1.5" i-Series Polypropylene Pulsation Dampener w/ PP Seats & BN Diaphragm
1.5" (1-1/2 in.) Polypropylene Pulsation Dampener with BN Diaphragm and PP Seat
Reducing pulsation and vibration in your system will reduce stress on downstream equipment and increase system efficiency. Pulsation dampeners can improve the performance and reliability of your fluid transfer process
Additional Specifications
Specifications
| Connection Type | Flange |
| Diaphragm Material | Buna-N |
| Fluid Section Material | Polypropylene |
| Hazardous Location Approval | None |
| Inlet Size (in) | 1.5 |
| Maximum Flow Rate (GPM) | 90 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Maximum Fluid Pressure (MPa) | 0.69 |
| Maximum Fluid Pressure (psi) | 100 |
| Minimum Fluid Operating Temperature (°C) | 0 |
| Minimum Fluid Operating Temperature (°F) | 32 |
| Model | i-Series |
| Outlet Size (in) | 1.5 |
| Seat Material | Polypropylene |
| Series | 1.5" |
| Type | Pulsation Dampener |
| Wetted Material | Polypropylene |
Compatible Equipment
Related Parts
Part of the PP fluid section material group for the f150P model with 1-1/2 inch port size This appears to be a dampener part number that is serviced by repair kit 2003021 (PP). The repair kit includes 1 or 2 diaphragms, 1 diaphragm bolt seal, 2 seats, 2 or 4 seat seals, spool seals, 1 spool housing seal, 1 package adhesive, and 1 set screw for overmolded diaphragm.
Reference Manuals
GRACO 2000470 - 1.5" i-Series Polypropylene Pulsation Dampener w/ PP Seats & BN Diaphragm
1.5" (1-1/2 in.) Polypropylene Pulsation Dampener with BN Diaphragm and PP Seat
Reducing pulsation and vibration in your system will reduce stress on downstream equipment and increase system efficiency. Pulsation dampeners can improve the performance and reliability of your fluid transfer process
Additional Specifications
Specifications
| Connection Type | Flange |
| Diaphragm Material | Buna-N |
| Fluid Section Material | Polypropylene |
| Hazardous Location Approval | None |
| Inlet Size (in) | 1.5 |
| Maximum Flow Rate (GPM) | 90 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Maximum Fluid Pressure (MPa) | 0.69 |
| Maximum Fluid Pressure (psi) | 100 |
| Minimum Fluid Operating Temperature (°C) | 0 |
| Minimum Fluid Operating Temperature (°F) | 32 |
| Model | i-Series |
| Outlet Size (in) | 1.5 |
| Seat Material | Polypropylene |
| Series | 1.5" |
| Type | Pulsation Dampener |
| Wetted Material | Polypropylene |
Compatible Equipment
Related Parts
Part of the PP fluid section material group for the f150P model with 1-1/2 inch port size This appears to be a dampener part number that is serviced by repair kit 2003021 (PP). The repair kit includes 1 or 2 diaphragms, 1 diaphragm bolt seal, 2 seats, 2 or 4 seat seals, spool seals, 1 spool housing seal, 1 package adhesive, and 1 set screw for overmolded diaphragm.
Reference Manuals
