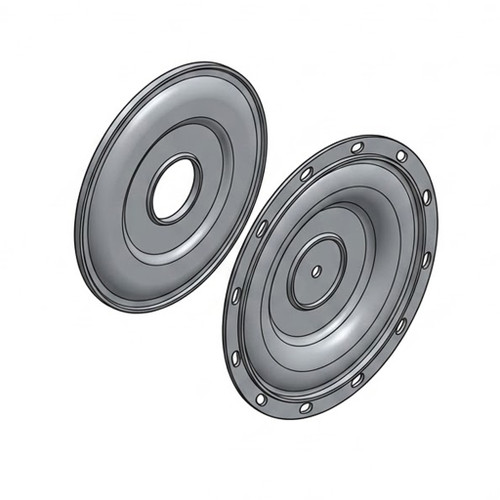

GRACO 24K897 - Buna-N Bolt-Through Diaphragm Kit for Husky 3300 Pumps
The GRACO 24K897 is a Buna-N bolt-through diaphragm kit for Husky 3300 air-operated diaphragm pumps (Ref. 20). It contains two diaphragms — enough to rebuild both fluid chambers — plus the shaft-bolt O-rings (used on metal pumps only) and anaerobic adhesive.
Specifications
| Specification | Detail |
|---|
| Diaphragm material | Buna-N |
| Configuration | Bolt-through (single-piece) |
| Reference no. | 20 |
| Fits pumps | Husky 3300A, 3300S, 3300P |
| Diaphragm bolt torque | 110-120 ft-lb (149-163 N•m) at 100 rpm maximum |
| Adhesive | Anaerobic, medium-strength (included) |
Kit Contents
| Ref. | Description | Qty |
|---|
| 20 | Diaphragm, Buna-N | 2 |
| 17 | O-Ring, shaft bolt (metal pumps only) | 2 |
| 302 | Diaphragm install tool (not included with rubber diaphragms) | 1 |
| — | Adhesive, anaerobic (not shown) | 1 |
Installation Notes
- Rounded side faces the diaphragm.
- Apply lithium-based grease to the shaft.
- Torque the diaphragm bolt to 110-120 ft-lb (149-163 N•m) at 100 rpm maximum.
- AIR SIDE markings on the diaphragm must face the center housing.
- Apply primer and the supplied medium-strength adhesive to the shaft-side threads.
- For maximum diaphragm life, reduce the pump cycle rate.
Compatible Equipment
- Husky 3300 Air-Operated Diaphragm Pumps — 3300A (aluminum), 3300S (stainless steel), 3300P (polypropylene)
Related Parts
Other Husky 3300 diaphragm kits (Ref. 20):
- 24K903 - FKM Diaphragm Kit
- 24K900 - Geolast Diaphragm Kit
- 24K902 - Santoprene Diaphragm Kit
- 24K901 - TPE Diaphragm Kit
- 24K904 - Polychloroprene Diaphragm Kit (standard)
- 24K898 - Polychloroprene Diaphragm Kit (overmolded)
- 24K899 - PTFE Diaphragm Kit (overmolded)
- 24K905 - PTFE/Santoprene Diaphragm Kit (two-piece)
Diaphragm plate kits (sold separately):
- 24K975 - Air-Side Plate Kit (all 3300 models)
- 24K906 - Fluid-Side Plate Kit (3300A aluminum)
- 24K907 - Fluid-Side Plate Kit (3300P polypropylene)
- 24K908 - Fluid-Side Plate Kit (3300S stainless steel)
Center Section Rebuild Kit: 24K850 - Center Section Rebuild Kit, 3300
Air Valve Rebuild Kit: 24K860 - Air Valve Rebuild Kit, 125 PSI
Reference Manuals
- 406956 (Page 1) - Bolt-Through Diaphragm Kits, Husky 3300
- 3A0411 (Page 35) - Husky 3300 Air-Operated Diaphragm Pump, Repair/Parts
