Safewaze 023-12160 10' to 20' Belmont Safety Hatch System with Round Brackets

Item #: 023-12160

Price: $3,817.18

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description

Safewaze 023-12160 10' to 20' Belmont Safety Hatch System with Round Brackets

The 10' to 20' Belmont Safety Hatch System with Round Brackets is a complete solution for safe rooftop access when using a hatch from a fixed ladder. Open, close and secure the roof hatch from the safety of the ground, leaving hands free for climbing. An innovative built-in pole extends at top to ensure smooth transitions between the ladder and roof.

Features:

System mounts directly to ladder for stability Ground level operation to open, close and secure hatch Safe transitions with built-in extension pole Manually operated drive unit with simple crank Installs on systems from 10' to 20'

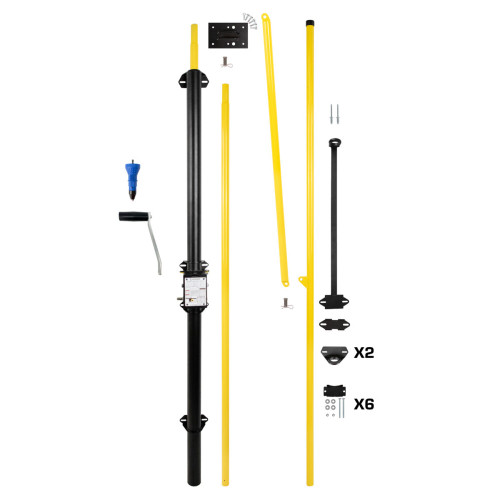

For use on hatches from 30" square to 36" square Assembly required, padlock not included Includes all required components and fasteners:
- (6) Brackets for side mounted installation on round tubing 1 3/4" diameter
- (1) Lifting tube extension
- (2) Intermediate guide brackets
- (1) Drill bit rivet adapter

Specifications:

Materials	Powder coated steel, zinc plated steel fasteners
Weight	39.4 lbs. (17.9 kg)
System Length	10' to 20' (3.0 m to 6.1 m)
System Capacity	600 lbs. (272.2 kg)
ANSI Standards	N/A
OSHA Standards	N/A

Specifications

Safewaze 023-12160 10' to 20' Belmont Safety Hatch System with Round Brackets

Features:

System mounts directly to ladder for stability Ground level operation to open, close and secure hatch Safe transitions with built-in extension pole Manually operated drive unit with simple crank Installs on systems from 10' to 20'
For use on hatches from 30" square to 36" square Assembly required, padlock not included Includes all required components and fasteners:
- (6) Brackets for side mounted installation on round tubing 1 3/4" diameter
- (1) Lifting tube extension
- (2) Intermediate guide brackets
- (1) Drill bit rivet adapter

Specifications:

Materials	Powder coated steel, zinc plated steel fasteners
Weight	39.4 lbs. (17.9 kg)
System Length	10' to 20' (3.0 m to 6.1 m)
System Capacity	600 lbs. (272.2 kg)
ANSI Standards	N/A
OSHA Standards	N/A
