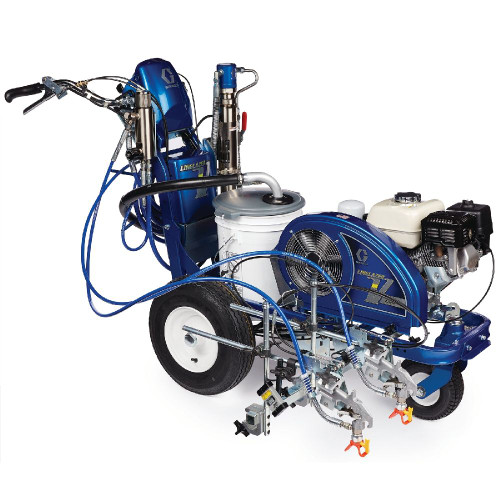

GRACO 17H465 - LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns, Hardened Stainless Steel, 3300 PSI

The LineLazer V 200HS HP Reflective Series is an automatic, high-performance line striping solution ideal for high-production jobs that require reflective beads. Features push button control with automatic/semi-automatic guns to reduce operator fatigue and take guesswork out of line length. Includes valuable job information system with USB download capability for tracking striping opportunities and data capture.

With high production features and bead capability, the LineLazer V 200HS HP Reflective Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines and reflective beads.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

• Pressurized EZ Bead System

  • Superior Bead Application Performance
  • Ensures proper bead flow and paint penetration
  • Dual bead tanks hold up to 120 lbs each
• Automatic Paint Gun System

  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue — push button line production
  • Quality solenoid driven system
• Auto-Layout II

  • Simplify Parking Lot Layout
  • SmartControl measures while you walk and puts down pre-marks
  • No need for measuring tape, string lines or aerosol cans
  • Cuts your layout time in half
• LiveLook Display with SmartControl
  • Striping Information At-A-Glance
  • Track, measure and control every aspect of your job
  • Accessible proof-of-job data from the J-Log System with USB Download
  • Consistent spraying pressure for perfect lines
• J-Log System with USB Download

  • Valuable Job Information
  • Proof of job = More striping opportunities.
  • USB download capability allows you to capture and save all job data
• Honda® GX Engine

  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low
• EasyMark Gun Adjustment System

  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector
• EZ Align Wheel System

  • Perfect Striper Tracking
  • Simple front wheel alignment, no special tools needed
• DualComfort Handlebar System

  • Easy Handlebar Adjustment
• Additional Features
  • Endurance Chromex Pump
  • High-Efficiency Hydraulic Motor
  • High-Capacity Cooling System
  • QuikSelect Gun Selector
  • Easy Out Pump Filter
  • LazerGuide 1700 Start/Stop Laser

Additional Specifications

• Flow Rate: 0.95 GPM fuel capacity per liter
• Max Working Pressure: 3300 PSI maximum tip size 0.047
• Material: Hardened Stainless Steel
• Bead Tank: 1 Pressurized Bead Tank
• Maximum Tip Size: 0.047
• Maximum Psi: 3300 PSI
• Weight: 306 lbs Standard Unit, 322 lbs HP Automatic Unit, 417 lbs HP Reflective Unit with Pressurized Bead System - 1 Tank
• Hose: 3/8 in x 25 ft (9.5 mm x 7.6 m) BlueMax 4 Airless
• Laser: LaserGuide 1700 Self/Ship Laser
• Switch Tip: LineLazer RAC 5
• Easy Out Filter: 50 Mesh
• Type: QuikChange System
• Intake: QuikAccess
• Rod: Chromex
• Cylinder: Hardened Stainless Steel
• Packings: V-Max Blue
• Tracking System: SmartControl
• Pbs Tanks: 1
• Laser Equipped: yes

Specifications

Features

• Push button control with automatic/semi-automatic guns
• Reduces operator fatigue
• Takes guesswork out of line length
• Less layout time with Auto-Layout II
• Easy to use - cuts layout time in half
• Exclusive LazerGuide 1700 Start/Stop Laser

Applications

• High-production line striping jobs
• Jobs requiring reflective beads
• Professional line striping applications
• Pavement marking
• Road striping
• Parking lot marking

Compatible Equipment

• LineLazer V 200HS series
• Honda GX 200cc engine
• RAC 5 switch tips
• BlueMax 4 Airless hose
• LaserGuide 1700 laser system

Related Parts

• 17H463
• 17H461
• 17H464
• 17Y231
• 17Y269
• 17Y270
• 17K585
• 17J964
• 17H460
• 25P350

Also includes all LineLazer V 200HS Standard Series features: DualComfort Handlebar System, EZ Align Wheel System, EasyMark Gun Adjustment System, QuikSelect Gun Selector, Honda GX Engine, Endurance Chromex Pump, Easy Out Pump Filter Part of the LineLazer V 200HS series. This is the HP Reflective configuration with 2 automatic guns. Applications include turf and pavement marking with reflective bead capability. HP Reflective model with 2 Auto Guns and 1 PBS Tank, includes laser. All auto guns can be actuated manually.

Reference Manuals

• 344385 (Page 10) LineLazerBrochure (ANZ ONLY)
• 3A3390 (Page 3) LineLazer V 200HS/200DC Airless Line Stripers, Parts
• 3A3426 (Page 3) LineLazer™ V 200HS & 200DC Airless Line Stripers Standard Series and High Production (HP) Series
